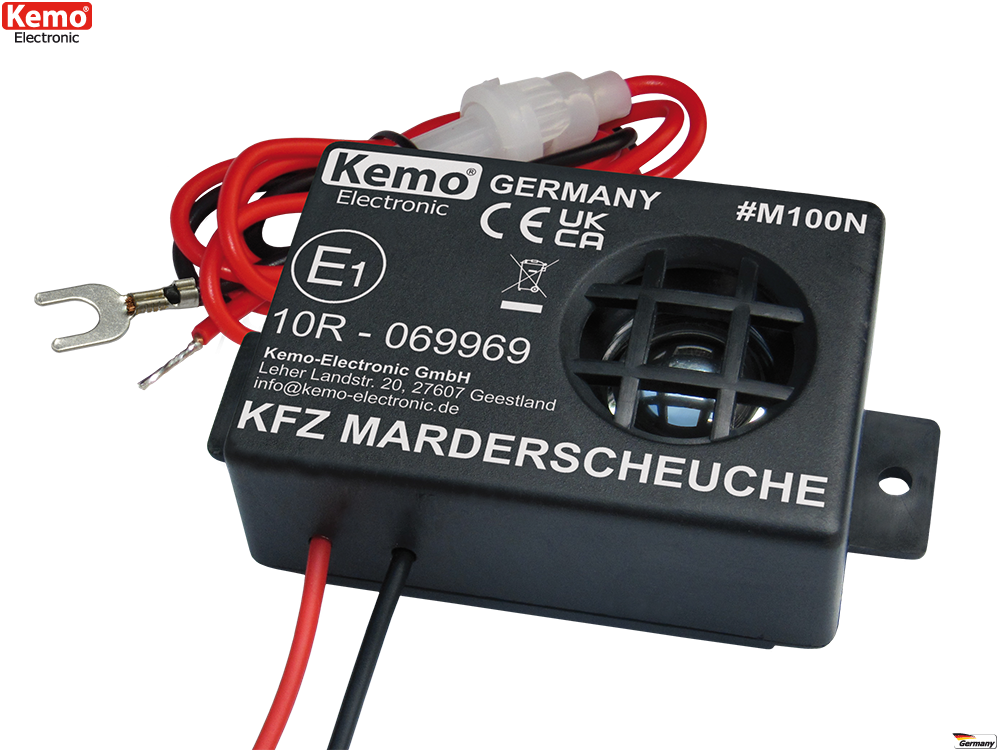

Ultrasonic Anti marten device for motor vehicles [M100N]

Ultrasonic Anti marten device for motor vehicles
Click to enlarge

 pieces

EAN: 4024028031002
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Features Powerful hemispherical dome speaker, 2-fold effectiveness ultrasound + pulsating light.
Operating voltage 11 - 15 V/DC (car battery)
Switch-on function soft start so that the vehicle computer will not be disturbed.
Average power consumption < 2 mA
Ultrasonic frequency approx. 23 kHz.
Angle of radiation approx. 140°
Acoustic pressure max. ca. 100 dB (± 20%) (Ultrasonic devices should have a sound pressure level exceeding 100 dB (C) to avoid habituation (ADAC test results). (Source de.wikipedia.org/wiki/Marderabwehr)
Sound loud pulsating
Loudspeaker ceramic piezoelectric ultrasonic loudspeaker with spherical membrane of aluminium.
Optical determent pulsating LED
Temperature range approx. –25 to +80°C
Electronics watertight encapsulated
Fuse in the fuse holder F500mA

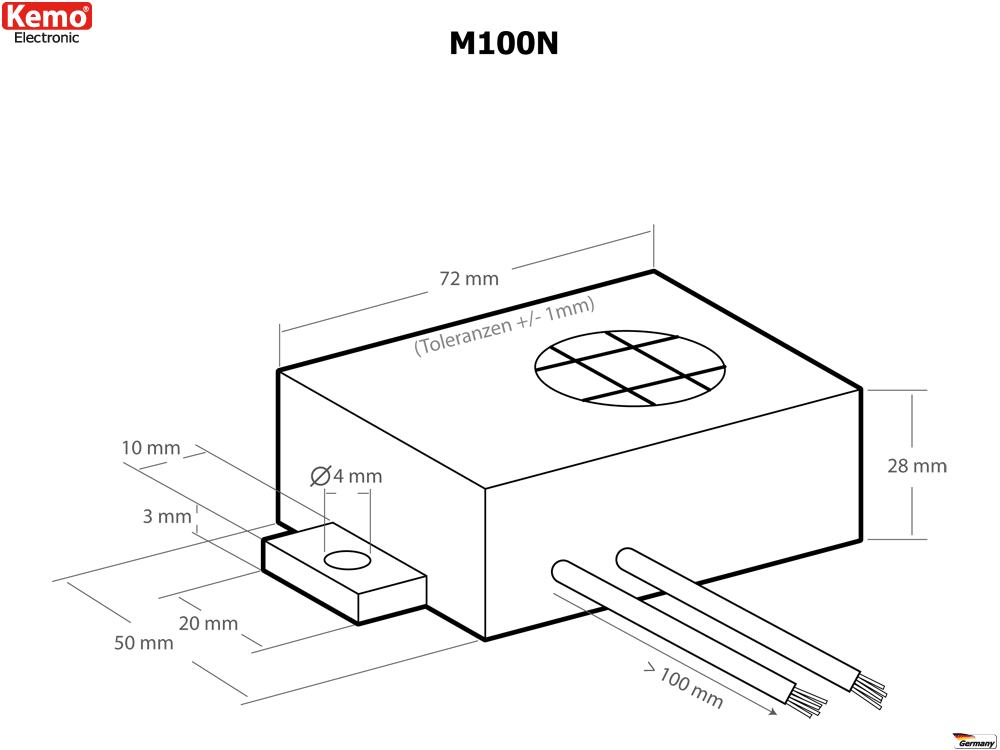

Dimensions approx. 72 x 50 x 28 mm (without fastening straps)
Voltage peaks secured against voltage peaks in the vehicle power supply up to 40 V (< 20 ms)
CAN data bus suitable for vehicles with CAN data bus.
Why does the device have no frequency change? Answer Martens and other small predators emit short and intense warning cries, no siren sounds! Our anti-marten device imitates these sine-like tones very naturally and is, therefore, optimal to scare away martens!

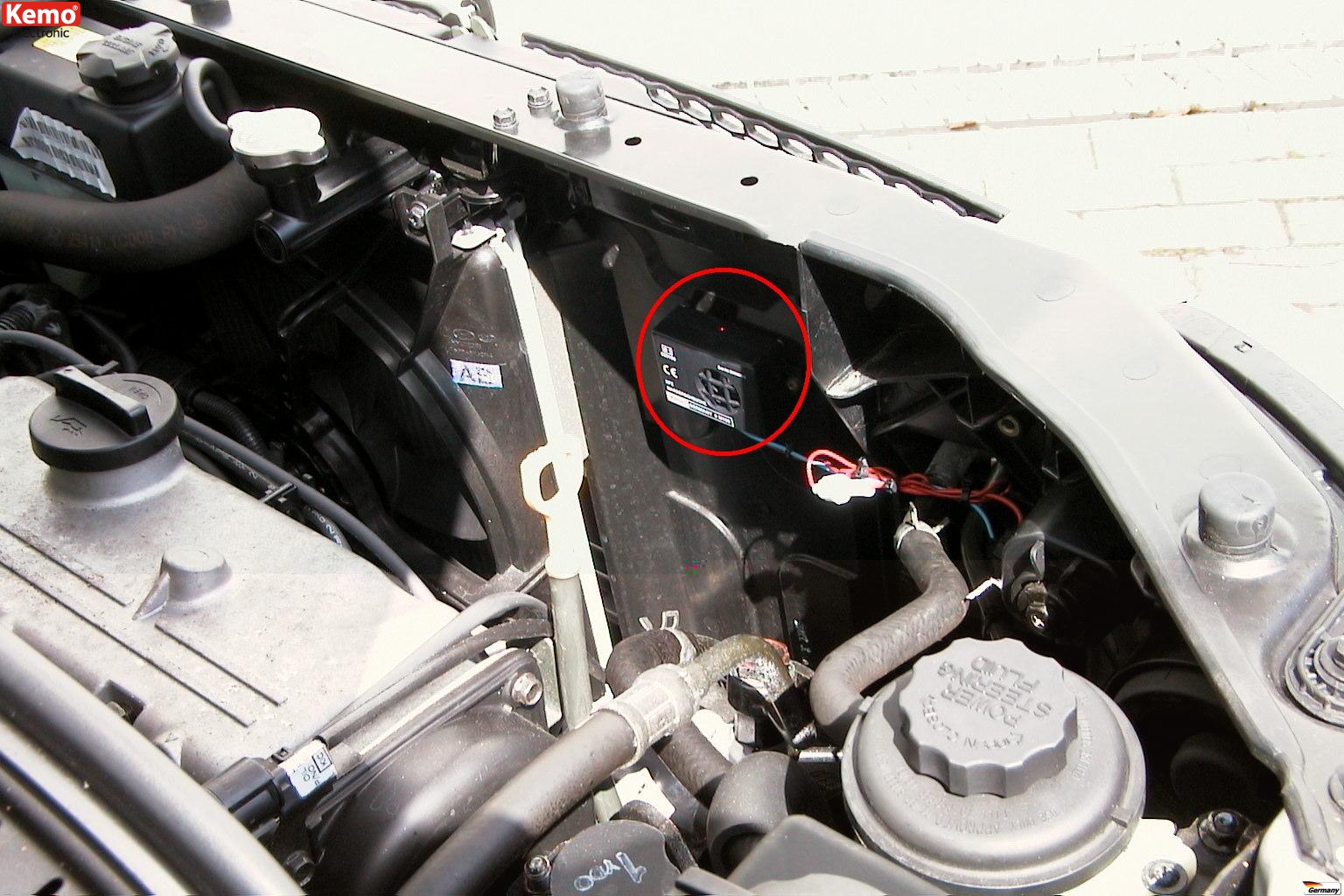

Produces aggressive ultrasonic sounds not audible to men which martens find extremely annoying and so try to avoid them, if possible. To be mounted in the engine compartment of motor vehicles.
Ultrasonic marten repellent for use in cars, houses and lofts. Produces enormously loud and pulsating ultrasonic sounds with a special dome speaker.

Available accessory: M020 - DC/DC Converter

YouTube.com




Download Video (mpg)
Download Video (wmv)
