| Technical Data |
| Musical power | max. 40 W at 4 Ohm loudspeaker load in case of an operating voltage of 16 V
| | Operating voltage | 6 - 16 V
| | Connectable loudspeakers | 4 - 8 Ohm
| | Sensitivity | < 500 mV
| | Frequency range | approx. 20 - 25.000 Hz

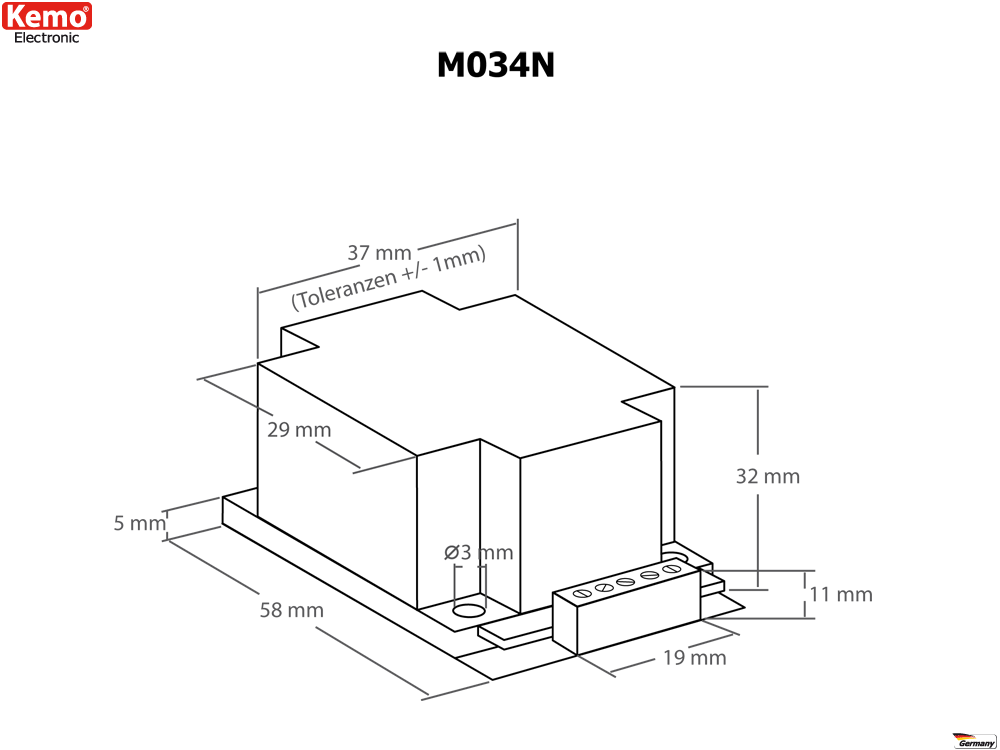

| | Dimensions | approx. 58 x 37 x 32 mm (without fixing straps) |

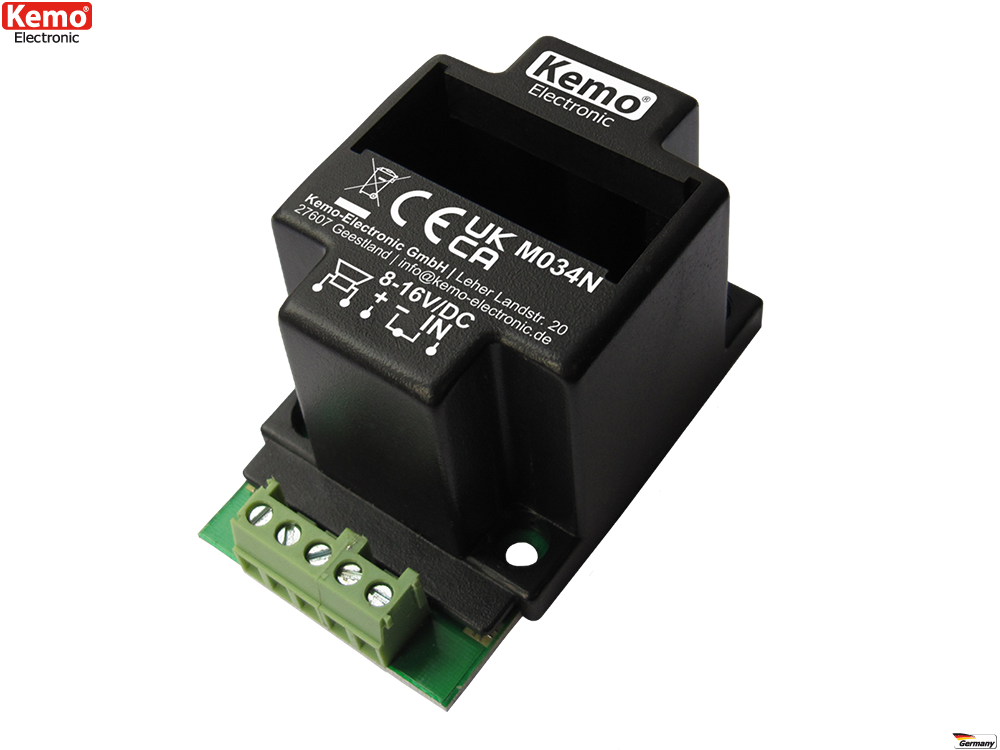

Loudspeaker output transformer amplifier for general use: e.g. increase of output of small radio- CD- tape- microphone amplifiers etc.
|
