PWM Power control 9 - 28 V/DC, max. 10 A [M171]

PWM Power control 9 - 28 V/DC, max. 10 A

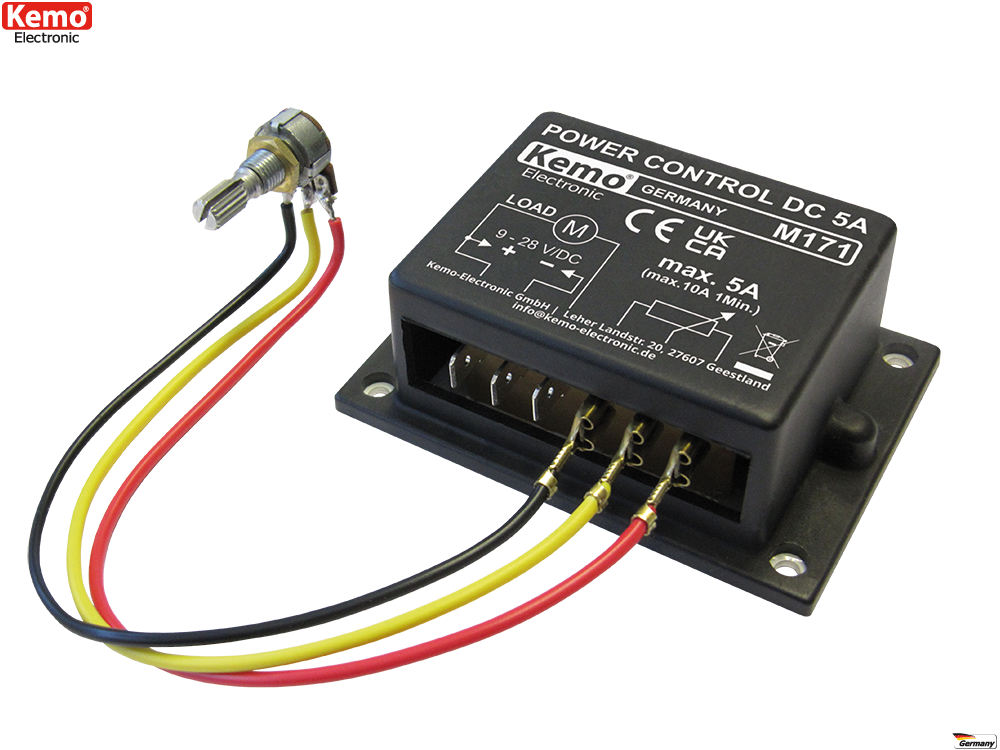

Click to enlarge | image may differ

EAN: 4024028031712
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Operating voltage 9 - 28 V/DC
Max. current carrying capacity 5 A or 10 A (if the module is screwed on a cooling plate)
Control rangeapprox. < 5% to > 95%
Control mode PWM pulse width modulation with a frequency between 10 - 20 kHz
Potentiometer 4,7 k lin (enclosed)
Permissible loads direct current motors, incandescent lamps, heatings, LEDs with protective resistors. Current consumption up to max. 10 A in each case.

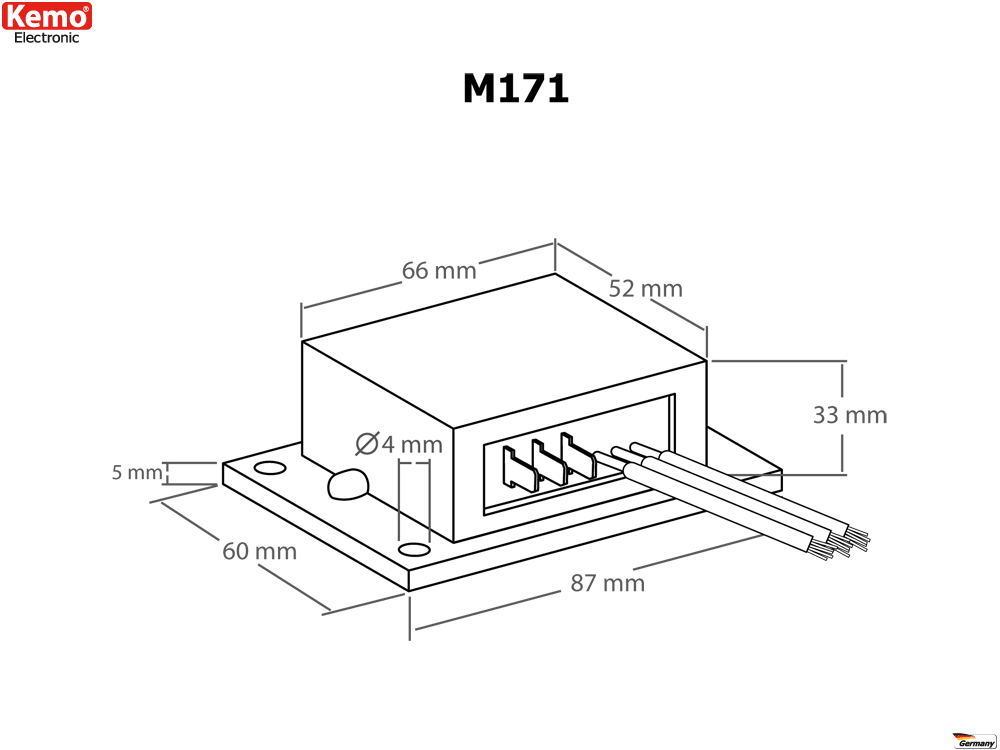

Dimensions approx. 87 x 60 x 33 mm (with mounting bottom)

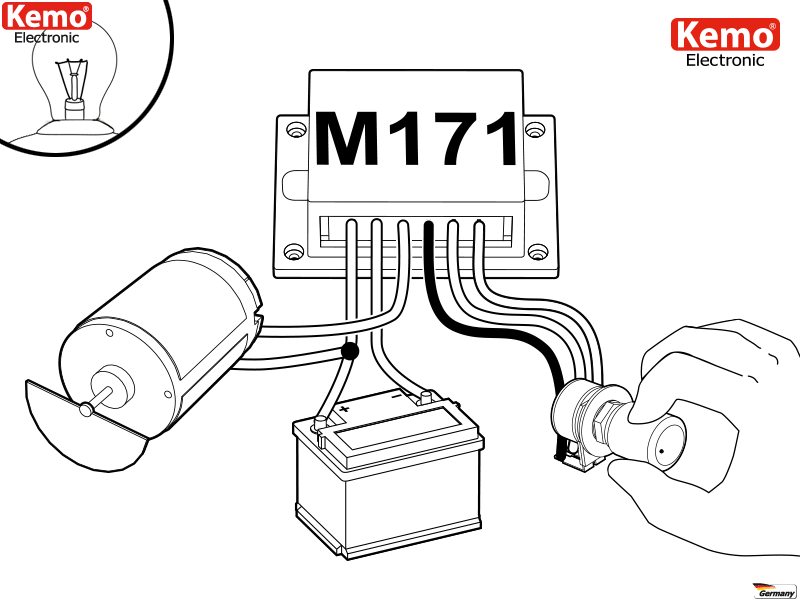

Power control to control direct current loads (motors, lamps, heatings, LEDs with protective resistors, etc.). Electric motors start well also at low revolution speeds because of the employed PWM (pulse width) modulation.

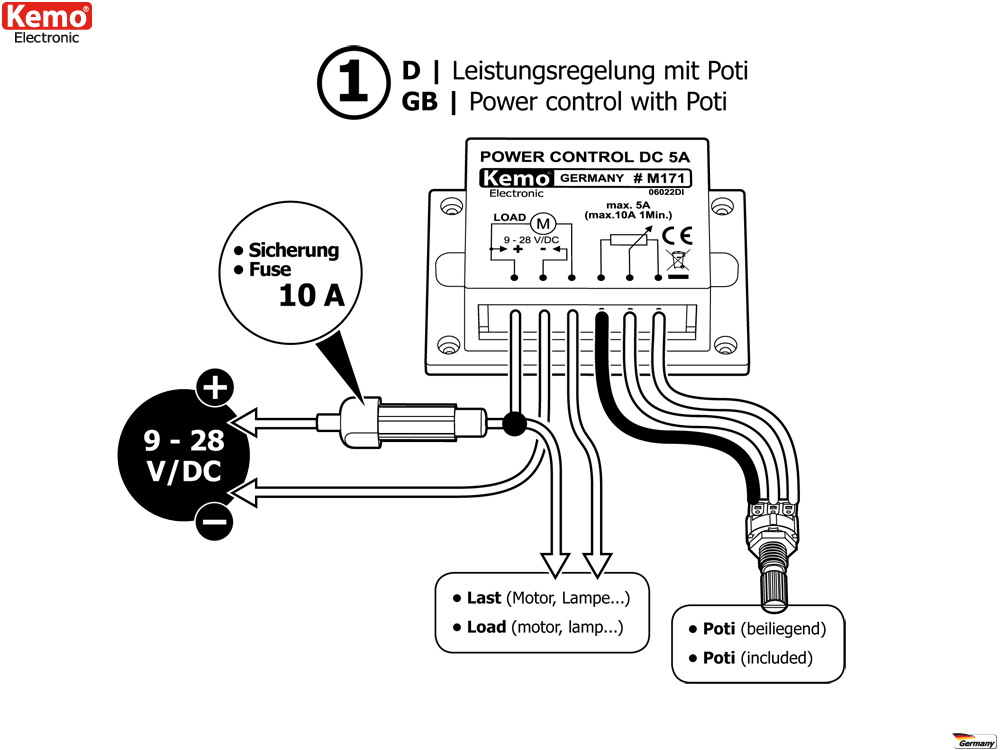

Important installation instructions, please note!

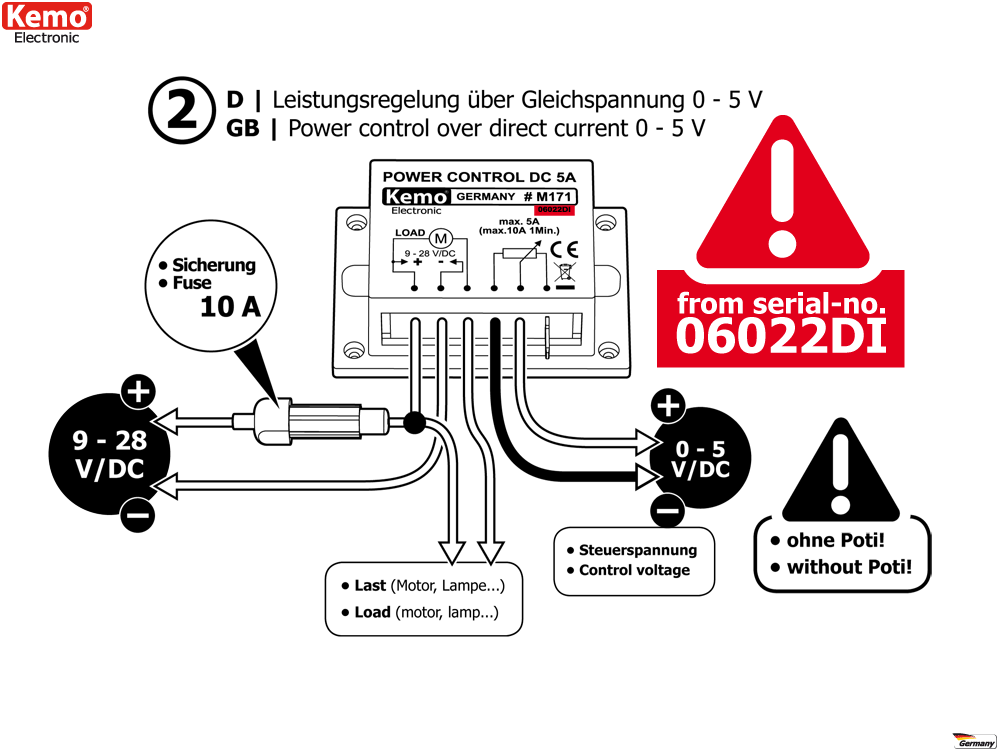

Modules from serial no. 06022DI (available > 11/2011) can also be connected to a control voltage of 0 - 5 V/DC.
