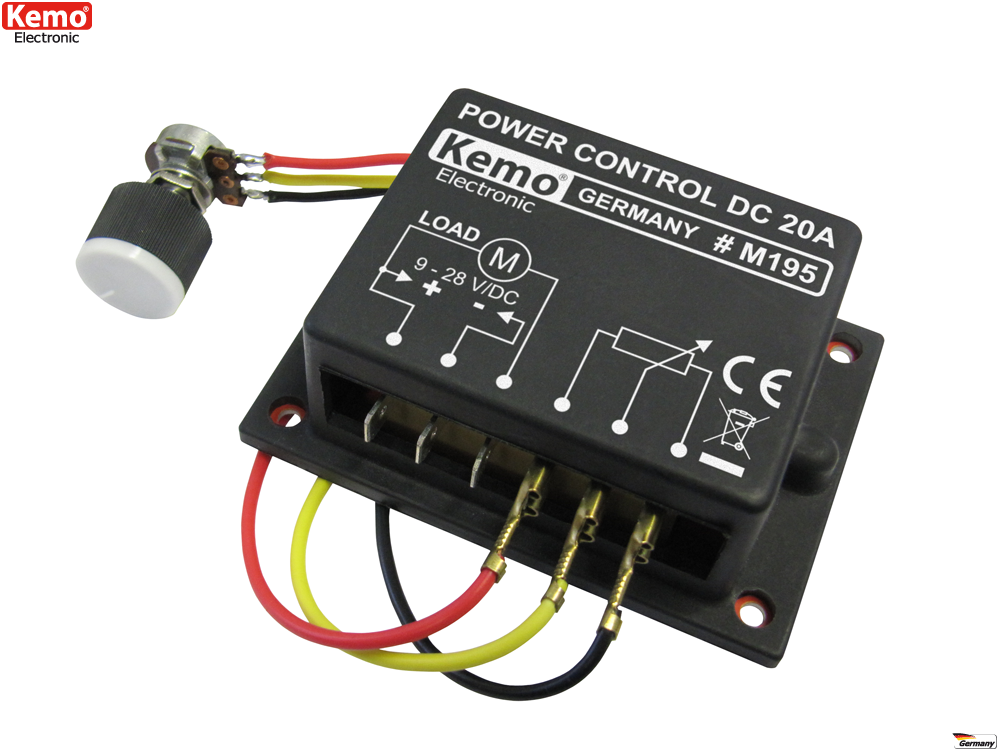

PWM Power control 9 - 28 V/DC, max. 20 A [M195]

PWM Power control 9 - 28 V/DC, max. 20 A
Click to enlarge | image may differ

EAN: 4024028031958
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Operating voltage 9 - 28 V/DC
Max. current carrying capacity 20 A (if the module is screwed on a cooling plate)
Control range approx. 0% to 100%
Control mode PWM pulse width modulation with a frequency between 300 - 600 Hz
Potentiometer 4,7 k lin (enclosed)
Permissible loads direct current motors, incandescent lamps, heatings, LEDs with protective resistors. Current consumption up to max. 20 A in each case.
Dimensions approx. 87 x 60 x 33 mm (with mounting bottom)

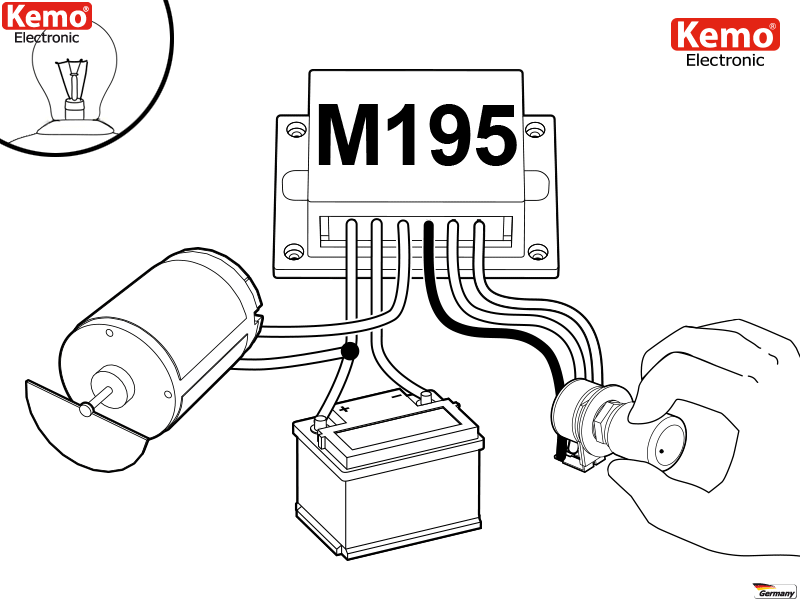

Power controller for controlling DC loads (DC motors, light bulbs, heaters, LEDs with current limiting resistors, etc.) The use of PWM (pulse width) control works well even with electric motors running at low RPM. Switching frequency: approx. 300 - 600 Hz (for motors, a humming noise may be heard). The control is via the supplied potentiometer or optional with an external control voltage 0 to 5 V/DC.
