| Technical Data |
| Operating voltage | 11 - 15 V/DC
| | Current consumption | < 2 mA
| | Frequency | ca. 23 kHz pulsating
| | Angle of radiation | ca. 160°
| | Sound power level | ca. 105 dB (± 20 %)
| | Dimensions | ca. 58x38x31 mm (without fixing straps) |
...for use in cars, houses and lofts. Produces enormously loud and pulsating ultrasonic sounds.

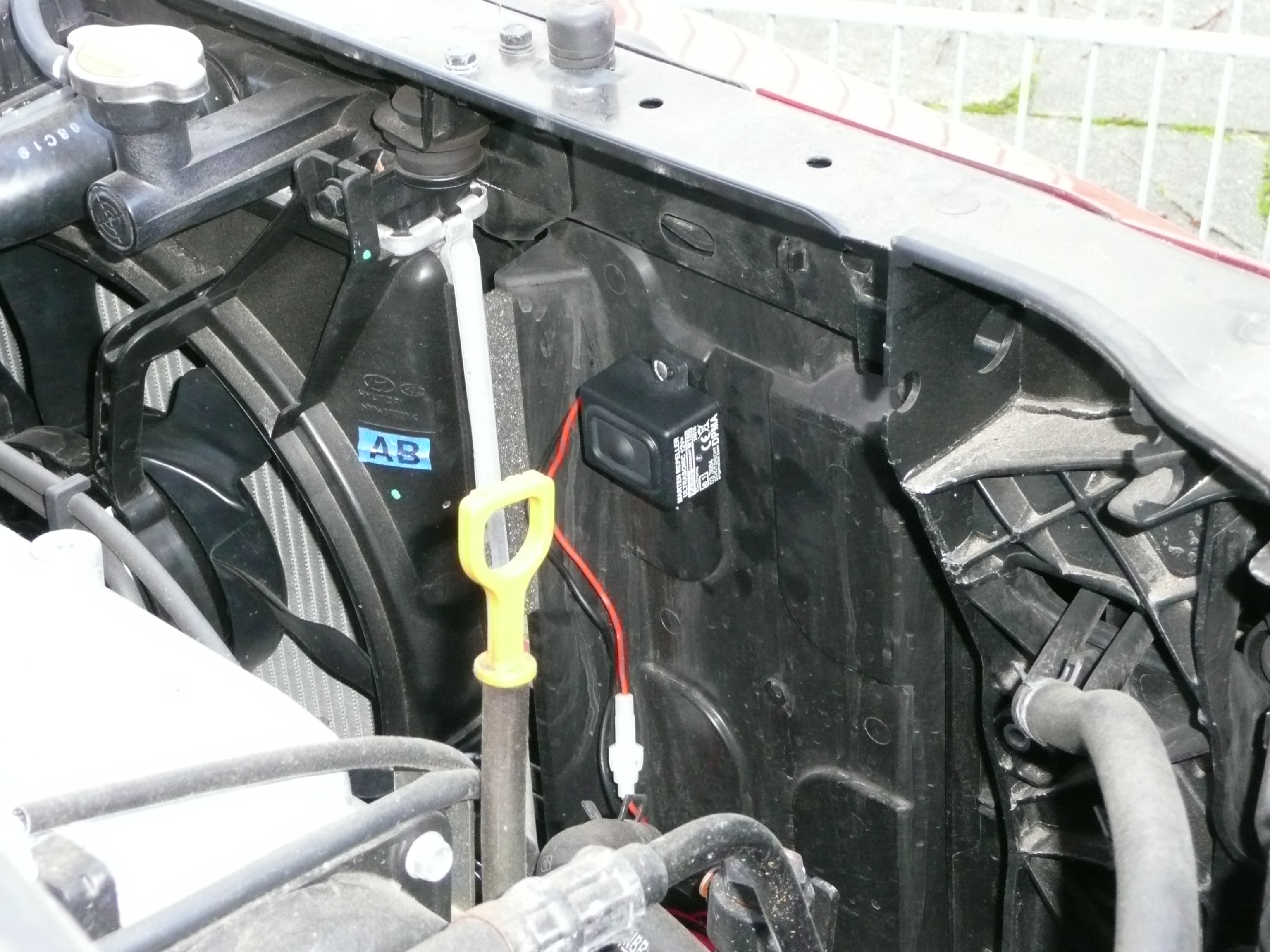

May be mounted at the manholes of the cars.
*IP 65: No penetration of dust at a low pressure of 20 mbar in the case. Protected against hose-water from every direction against the case (corresponds to 12,5 ltr/minute...garden hose), (test period: 5 minutes).
kemo_antimarten_flyer.pdf
Available accessory: M020 - Voltage transformer 24 V/DC to 13,8 V/DC max. 1,1 A
This clip only shows that the module is waterproof, it is not suitable for permanent use under water.
|
