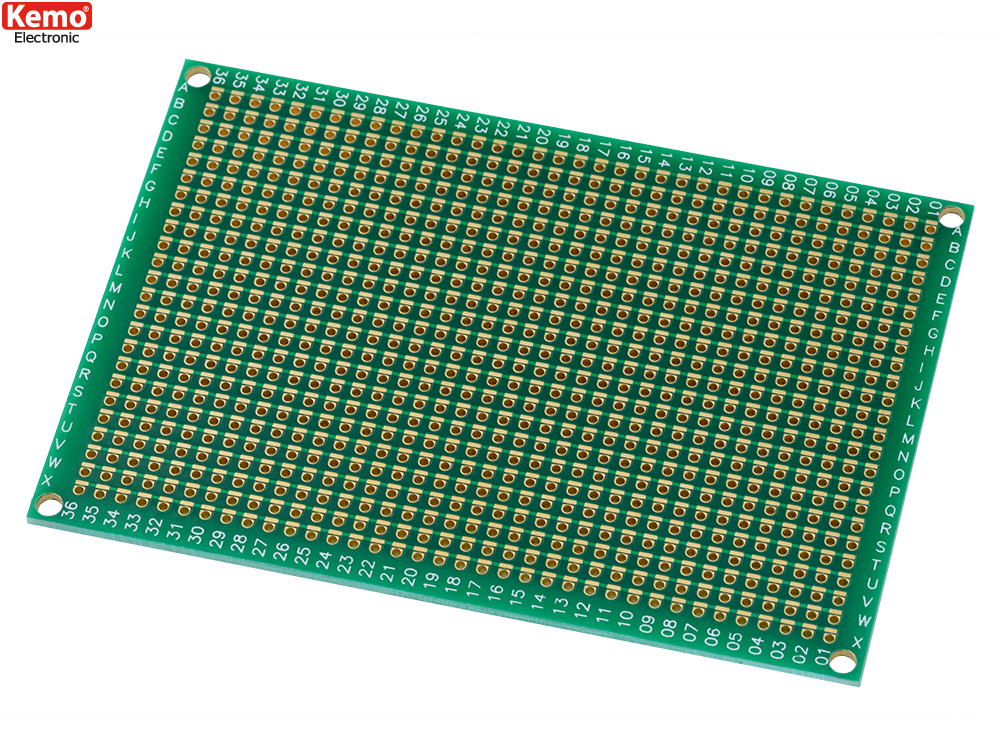

Experimental board dot/matrix grid [E014]

Experimental board dot/matrix grid
Click to enlarge | image may differ

EAN: 4024028070292
Questions to the item
FAQ
Print preview


Technical Data
Double sided copper layer approx. 35 µm
Material FR4 (Epoxid)
Hole distance 2.54 mm
Hole Ø approx. 1 mm
Thickness approx. 1.5 mm
Dimensions approx. 100 x 70 mm

Experimental board in half euro measurement, double sided, flash-gold plated (better for soldering "lead-free").

Each contact point (hole) can optionally be connected to the adjacent strip trace with a solder bridge. On the board, these strip conductors run horizontally on one side and vertically on the other side. This allows simple connections between the individual holes.

FR4 Epoxid
