Rain Sensor, Capacitive [M152K]

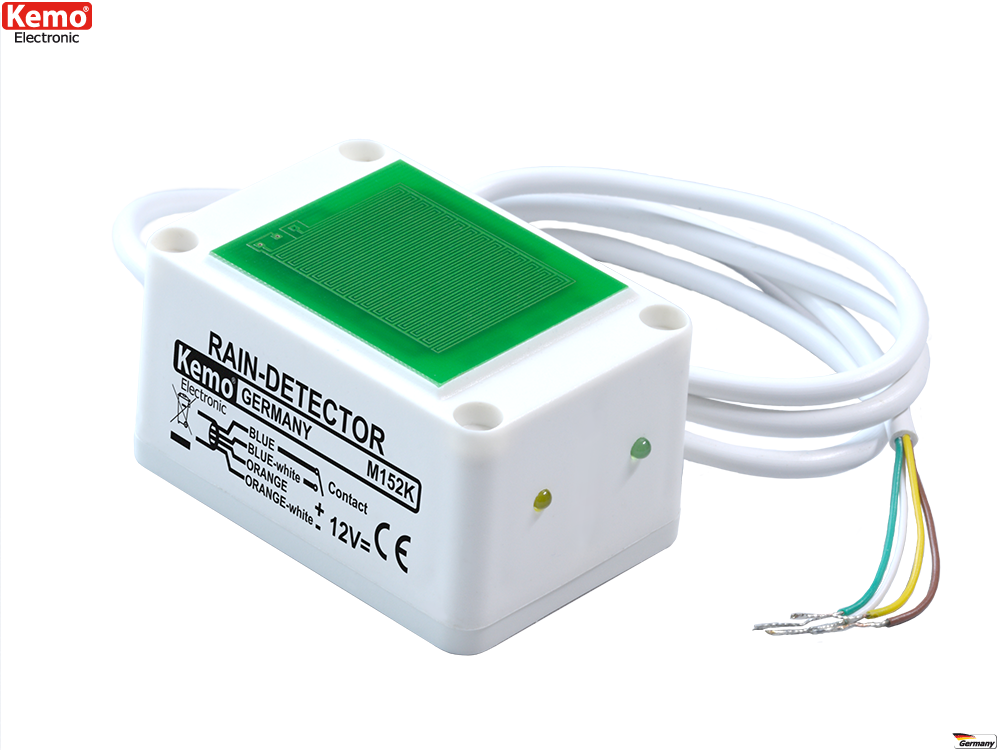

Rain Sensor, Capacitive
Click to enlarge | image may differ

EAN: 4024028031538
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Operating voltage 12 V/DC
Current consumption max.approx. 130 mA
Relay contact 1 x ON, maximum load 25 V 2.5 A
Sensor heating automatically in case of contact with rain
Light-emitting diode 1 indication that the rain sensor works
Light-emitting diode 2 indication that rain is reported and the relay has switched on
Duty cycle of the relay as long as the sensor is wet
Sensitivity adjustable
Active sensor surface approx. 26 x 32 mm
Overall dimensions approx. 65 x 45 x 36 mm

A relay connects if the completely insulated sensor plate gets wet (e.g. raindrops). In contrast to rain detectors with a metallic sensor, this sensor functions capacitively. That means it also switches when getting into contact with distilled water (completely clean rain). Skylights may then be closed with it, canvas blinds may be pulled in or rain is just indicated. 2 installed LEDs indicate the function. The sensitivity is adjustable.
