Technical Data |
Kit | To solder yourself | Operating voltage | 9 V alkaline block battery
| Current consumption | temporary (keystroke) 100 - 200 mA
| Output voltage (spark) | > 15.000 V
| Frequency of sparks | 1 spark per keystroke, spark sequence: may be released every 2 seconds at maximum
| Board size | approx. 64 x 68 mm |

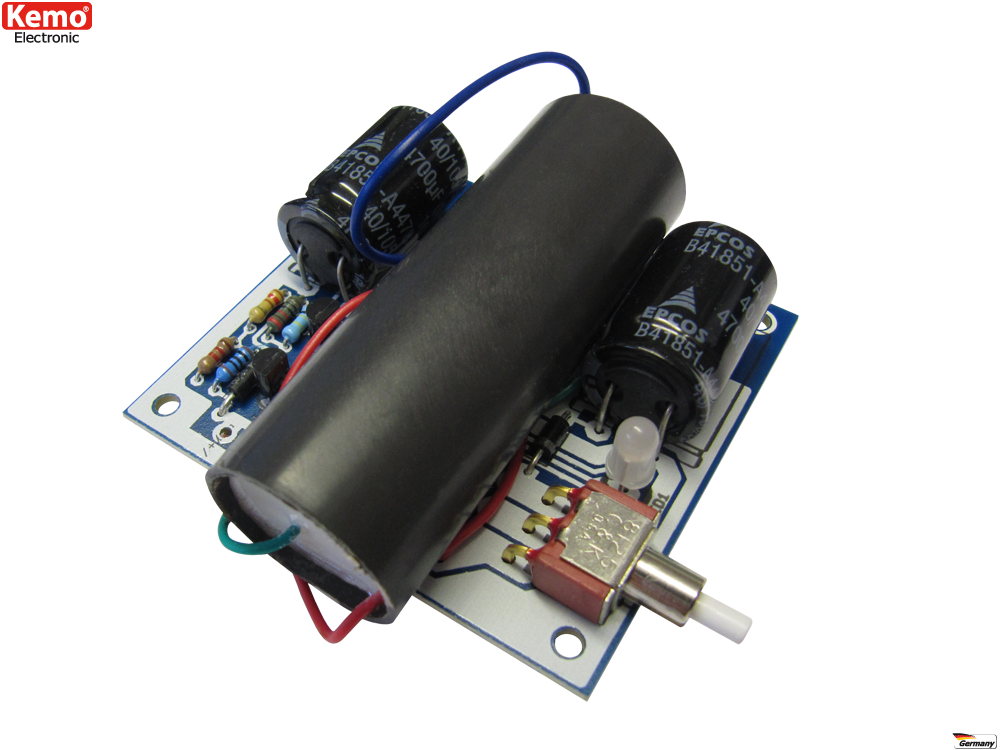

Produces high-voltage sparks of more than 15,000 V from a 9
V battery, which may even penetrate through cloth. Ideal as self-defence
against wild animals, etc. or for physical experiments.
The possession as a weapon is prohibited in many countries (e.g. in the
EU).
A deterrent effect is already achieved through the sparks flashing over and
the sparking crackle!
Fitting case: G02B - 6 V Plastic Case, Large approx. 123 x 72 x 39 mm
|
