| Technical Data |
| Operating voltage | 12 V/DC ± 5%
| | Current consumption | off-condition: < 6 mA, on-condition:< 50 mA
| | Switching contact | 1 x ON, max. 24 V max. 10 A AC or DC
| | Connection | strip terminal for additional on-key button, off-key button, switching contact, 12V operating voltage connection
| | Display | 1 LED each for “operation” and “switching on”

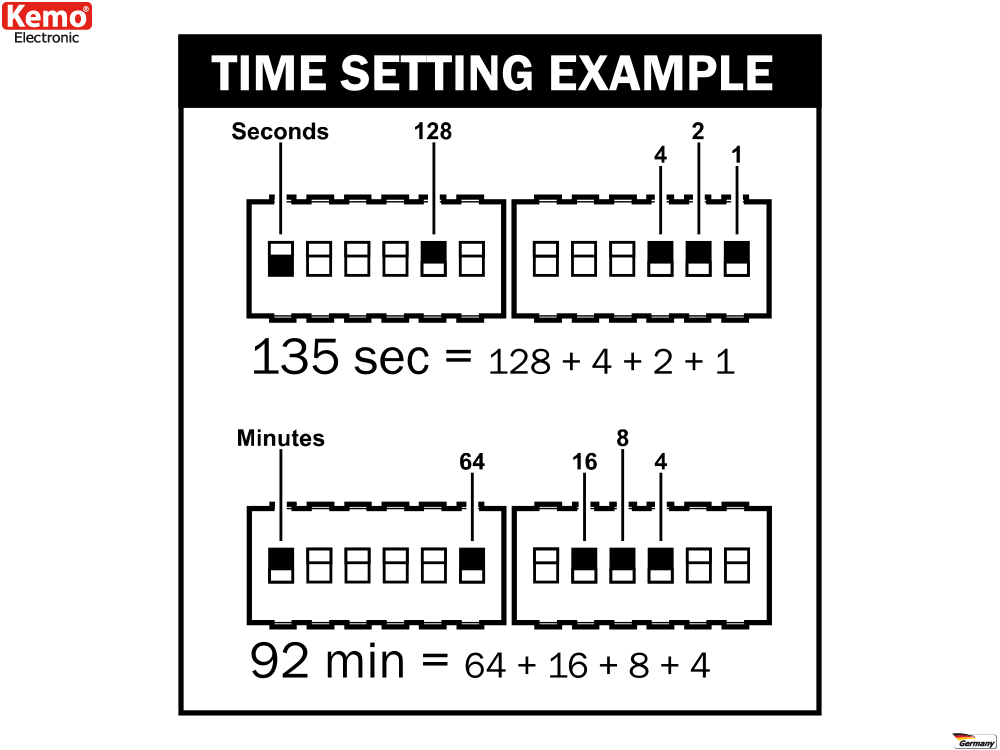

| | Adjustable turn-on times | 1 second up to 2047 seconds in 1-second steps or 1 minute up to 2047 minutes in 1-minute steps
| | Accuracy of the adjusted times | approx. ± 10%
| | After starting the time, the switching on may be stopped at any time by pressing the “Off” key
| | Auto boot | When connecting a capacitor 22 μF >50 V to the terminals for the start push-button, the timer starts automatically when switching on the operating voltage
| | Dimensions | approx. 120 x 70 x 30 mm (without fastening feet) |

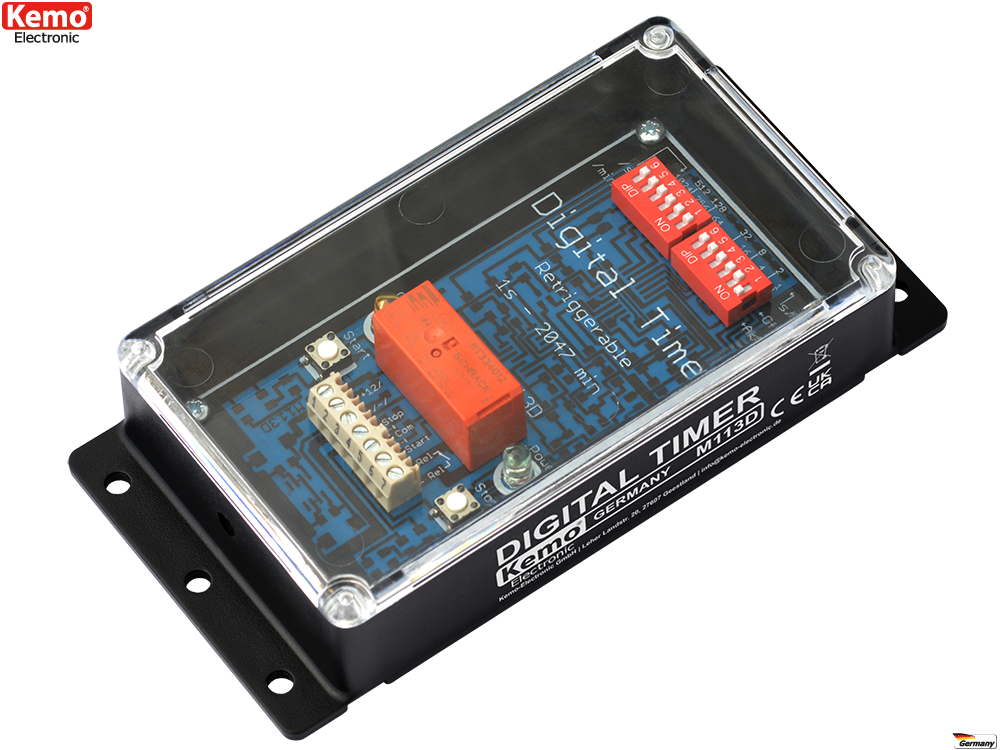

Timer with adjustable times between 1 second
and 2047 seconds or 1 minute and 2047 minutes.
The timer switches on after pressing the key
and switches off again when the adjusted time has
elapsed. The time lapse may be stopped at any time
by using a second key. External push-buttons may be
connected (not included). The timer can also be started by external control pulses (3 - 24 V / DC) or automatically after switching on with the connection of an Elko (22 μF 50 V).
|
