Soldering course - page 14

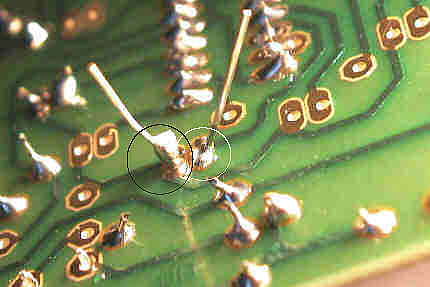

In this picture you may see a "cold soldering joint" (black circle) and a poor connection between wire and land (white circle).

REASON: The solder was heated too long. Therefore the flux filling of the solder vaporized and the solder cannot connect with the land.
