Soldering course - page 5

Prior to fitting the circuit board with the components these must be bent according to the grid on the board. Should the component be longer than the distance between 2 holes it has to be inserted vertically.

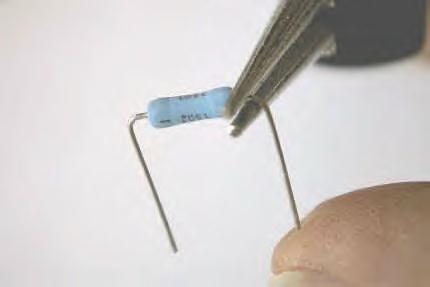

To avoid any damage to the components bend it as shown in the picture.

ANOTE: Do not cut off the ends of the wire prior to the soldering.
