Soldering course - page 6

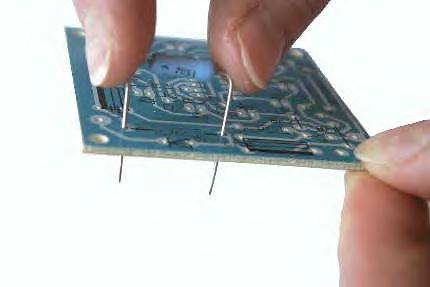

Picture of inserting a component

Insert the component to the correct position on the board.

In case you are not sure please see the attached sketch. On top of the circuit board is an imprint of the corresponding components.
Diode, transistor and electrolytic capacitor: Please pay attention to the polarity.
