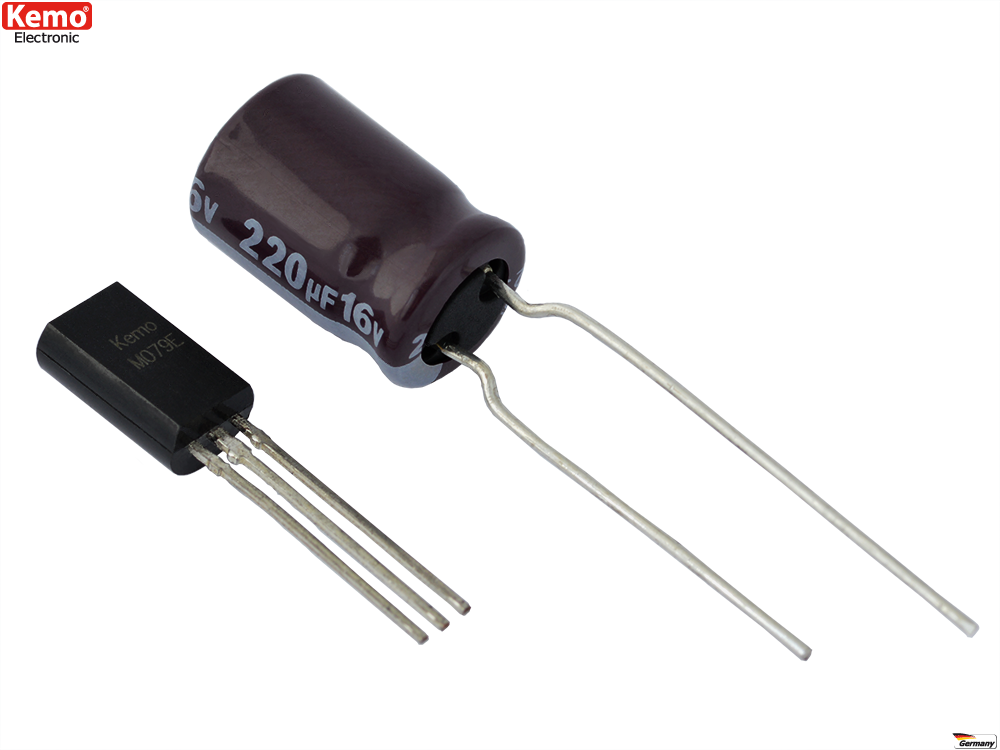

Flasher / Alternating Flasher 7 - 24 V/DC [M079E]

Flasher / Alternating Flasher 7 - 24 V/DC
Haga Click para agrandar

EAN: 4024028030760
Descripción (pdf)
Preguntas sobre el artículo
Solución de problemas
Vista para impresión


Technical Data
Operating voltage range approx. 7 - 24 V
Power rating range (connectable lamp load) approx. 10 mA - 1 A
Flash frequency Ø approx. 1.2 Hz (approx. 1 flash pulse every 0.8 sec.)
Duty cycle per flash pulse approx. 50% (approx. 0.4 sec)
Operating temperature approx. -20 - + 80°C
On-resistance in the flasher unit approx. 0.08 ohm
Dimensions of the electronic flasher unit approx. Ø 3.4 x 8 mm
Dimensions of the corresponding capacitor approx. Ø 6.5 x 12.4 mm
Protected against reverse battery and short-circuit proof

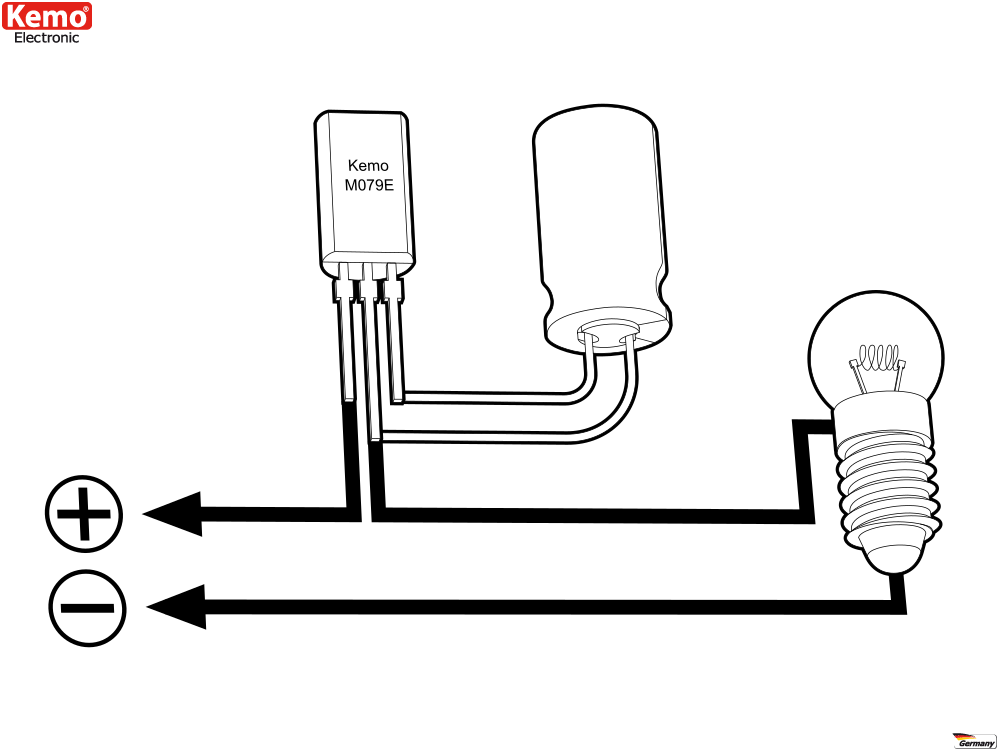

Very small electronic flasher unit consisting of 2 small electric components only during operation with an incandescent lamp. Circuit diagrams for many variations are enclosed. It is also possible to connect LEDs. However, these must be then operated with additional protective resistors (not included). 3 additional resistors (not included), which are tailored to the respective configuration are required for the operation as alternating flasher. The components have to be connected by using a soldering iron.
