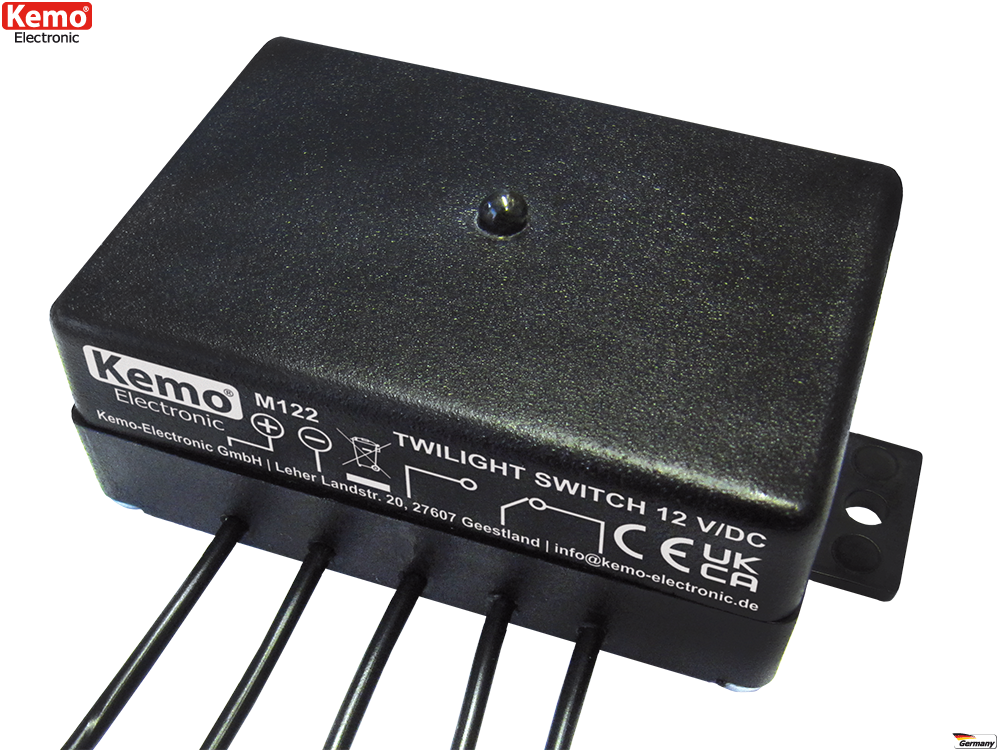

Twilight switch 12 V/DC [M122]

Twilight switch 12 V/DC
Click to enlarge | image may differ

EAN: 4024028031224
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Operating voltage 12 V/DC (11 - 14 V/DC)
Power consumption ca. 2 mA / 35 mA (relay off / on)
Relay contact 1 x switch-over, loading capacity max. 25 V / 3 A
Operating temperature range ca. -15 - +50°C
Luminous intensity switching-on ca. 25 lux ±20%
Luminous intensity switching-off ca. 45 lux ±20%
Switching delay ca. 3 - 4 seconds

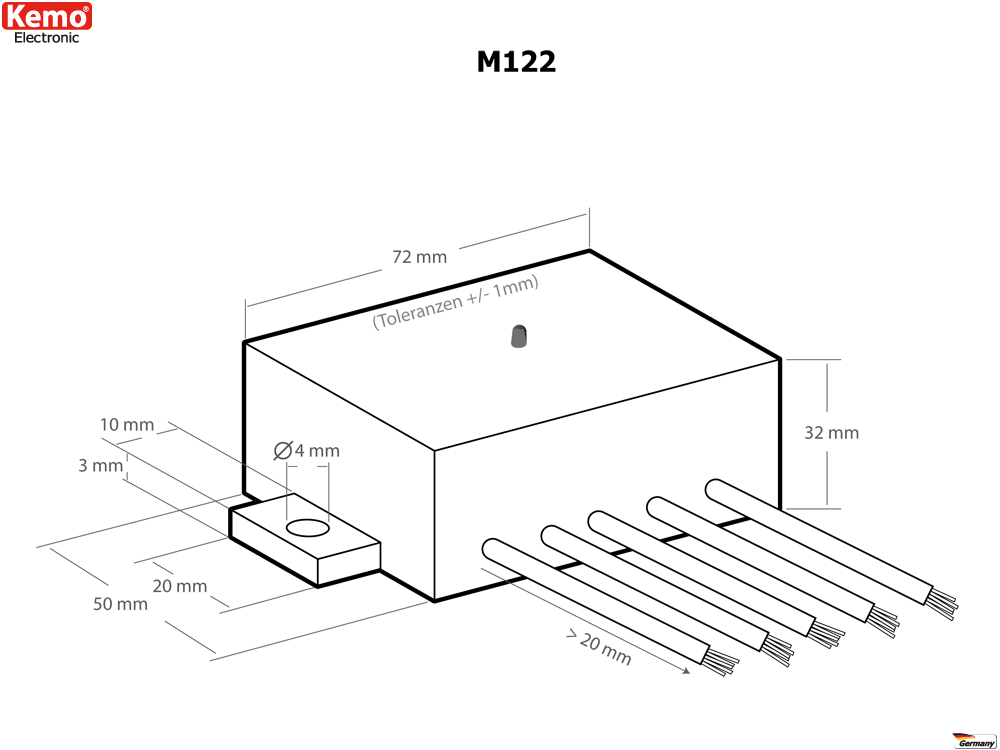

Dimensions ca. 72 x 50 x 32 mm (without fastening straps)

The twilight switch switches on e.g. lamps at nightfall and off again at daybreak. (for weekend cottages, sailing yachts, caravans etc.) Distribution output: relay 1 x SWITCH OVER, max. 3 ampere.

The sensitivity of the luminous intensity may be changed by partially covering the sensor mechanically.

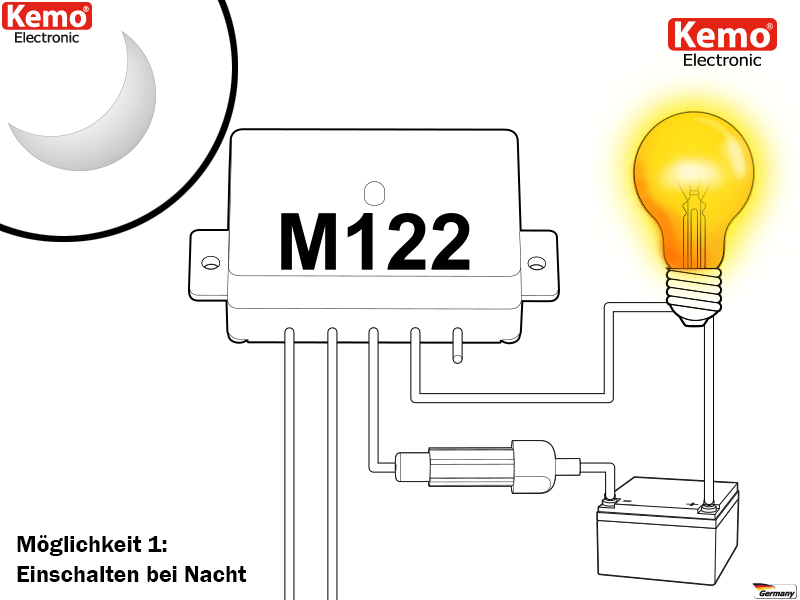

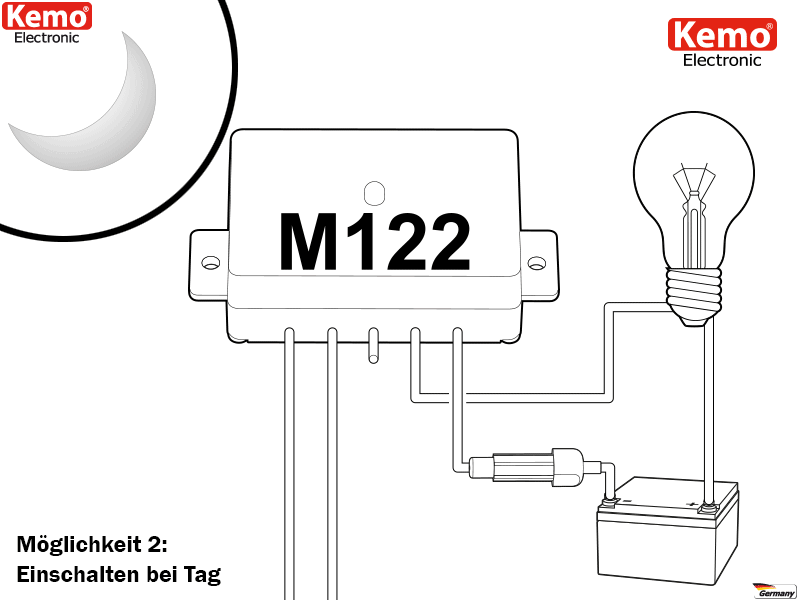

Connection plan for 12 V load, without external power source
