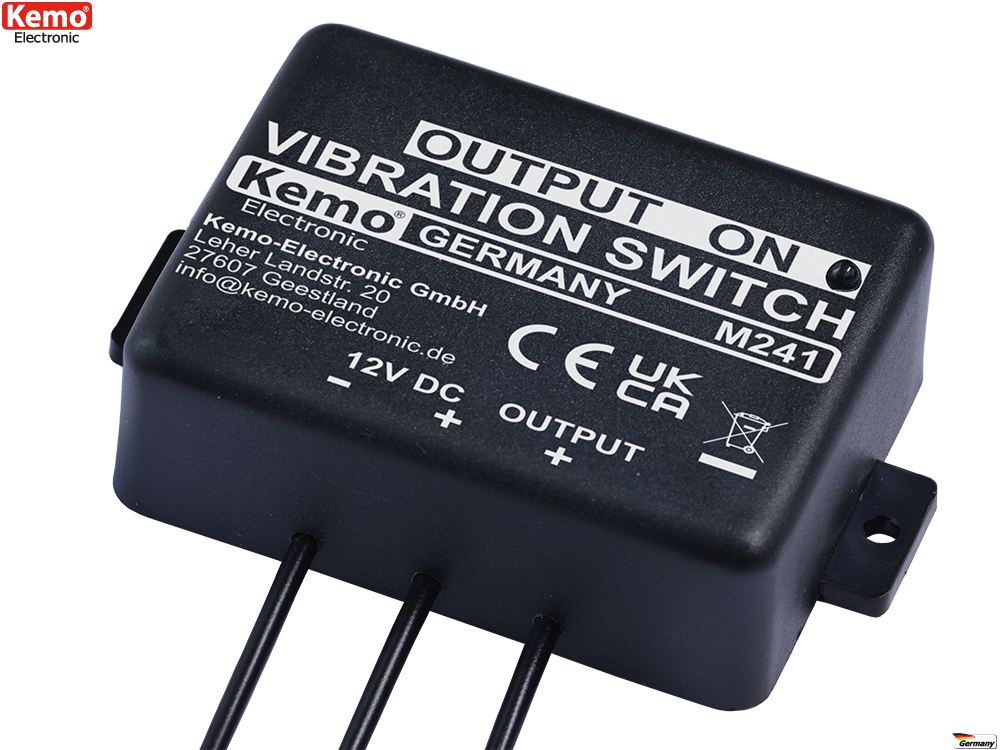

Vibration Switch 12V DC [M241]

Vibration Switch 12V DC
Click to enlarge | image may differ

EAN: 4024028032412
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Operation voltage 11 - 15 V direct current voltage
Own current consumptionin case of vibrations, motor runs (LED off): < approx. 0.000005A (< 5μA)
At rest, no vibrations (LED flashes) < approx. 0.000008A (< 8μA)
Max. switching current (max. current consumption of the connected device) 1 A
At rest (no vibrations), the input voltage (11 - 15 V/DC) is switched through to the output and the connected device is in operation.
Switch-off delay during movement approx. 3 seconds (depending on the intensity of the vibrations)
Switch-on delay at end of movement approx. 22 seconds
Switching sensitivity roughly adapted to the vibrations of an combustion engine in a motor vehicle
Operating temperature range approx. -20°C to +70°C
Dimensions (without fixing straps) approx. 60 x 45 x 20 mm

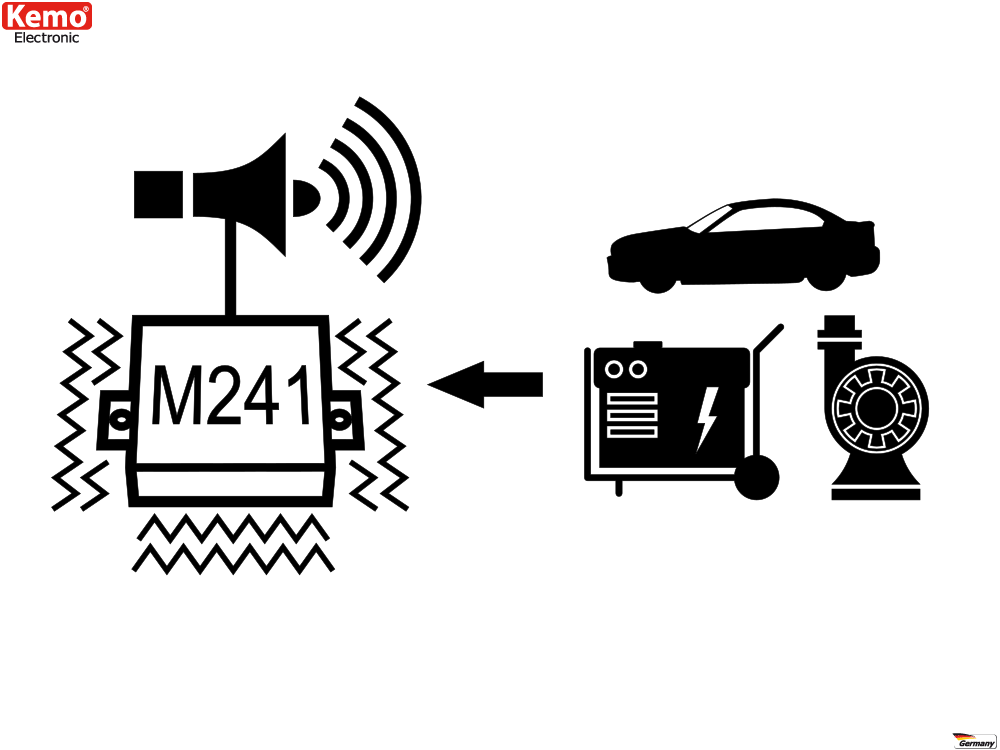

Vibration switch, switches 12 V devices off when vibrations occur (e.g. motor running noises) and on with a time delay at standstill. Operating voltage: 11 - 15 V. For devices up to a current consumption of approx. 1000 mA. Indication by a flashing LED. The vibration switch switches on e.g. signal horns when a machine (e.g. pump) switches off and no longer vibrates. Or a marten repellent, if the vehicle has no more engine vibrations or driver vibrations and is parked.
