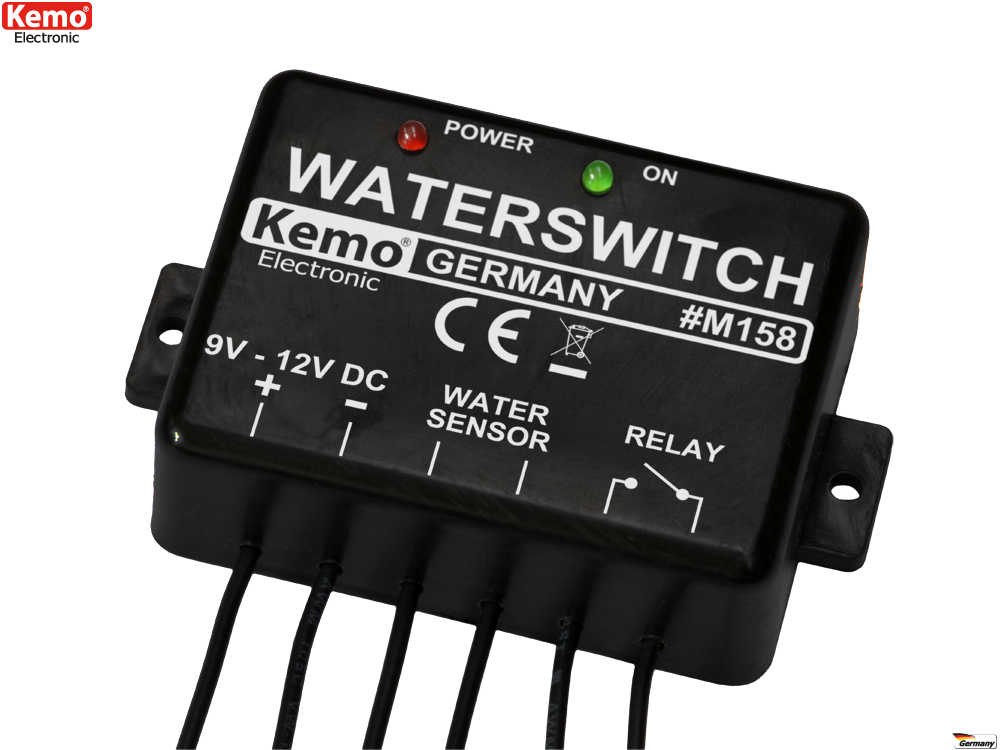

Water Switch 9 - 12 V/DC [M158]

Water Switch 9 - 12 V/DC
Click to enlarge | image may differ

EAN: 4024028031583
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Operating voltage 9 V/DC voltage are ideal (max. 12 V/DC), (please do only employ a stabilised power supply)
Current consumption "Ready" < 10 mA. In case of contact with water when the relay picks up < 90 mA each with 9 V/DC
LED displays 1 LED for the indication of readiness “POWER”, 1 LED for the indication “ON”, if the relay switches on
Connections via free cables
Approved cable length towards the water sensors max. 5 m with normal cable, max. 100 m with shielded cable, if the shielding braid is connected with the negative pole of the distribution voltage

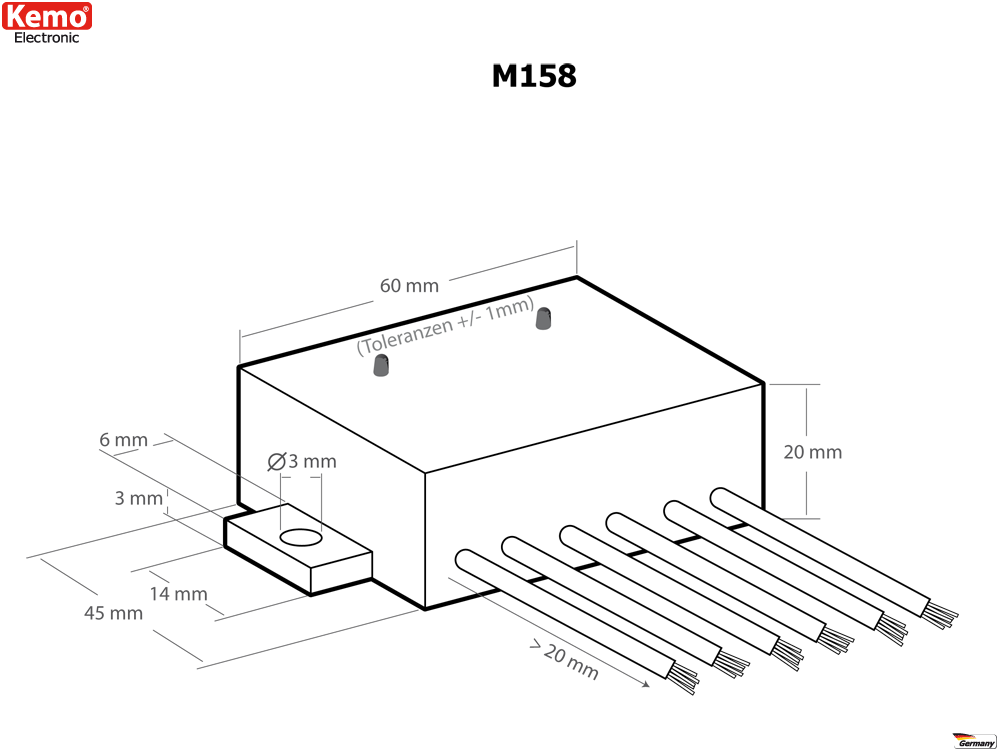

Dimensions sealing case approx. 60 x 45 x 20 mm (without fastening straps)

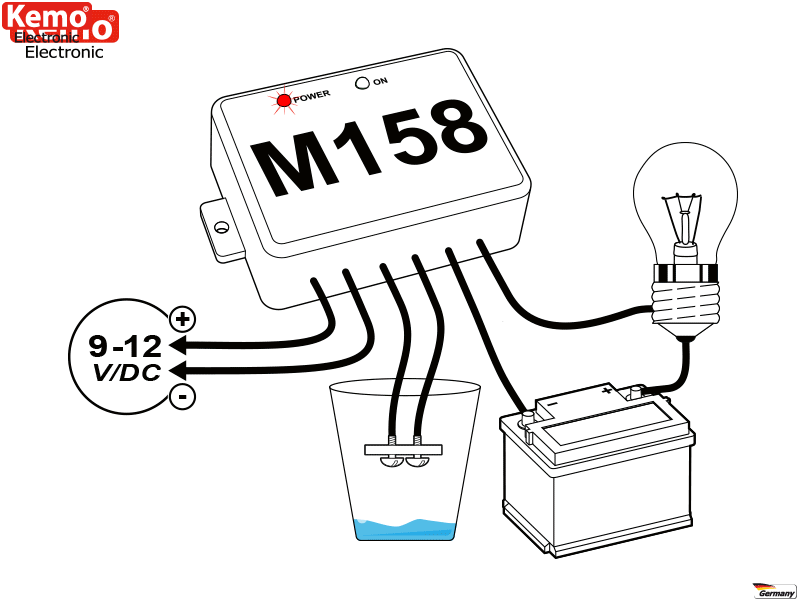

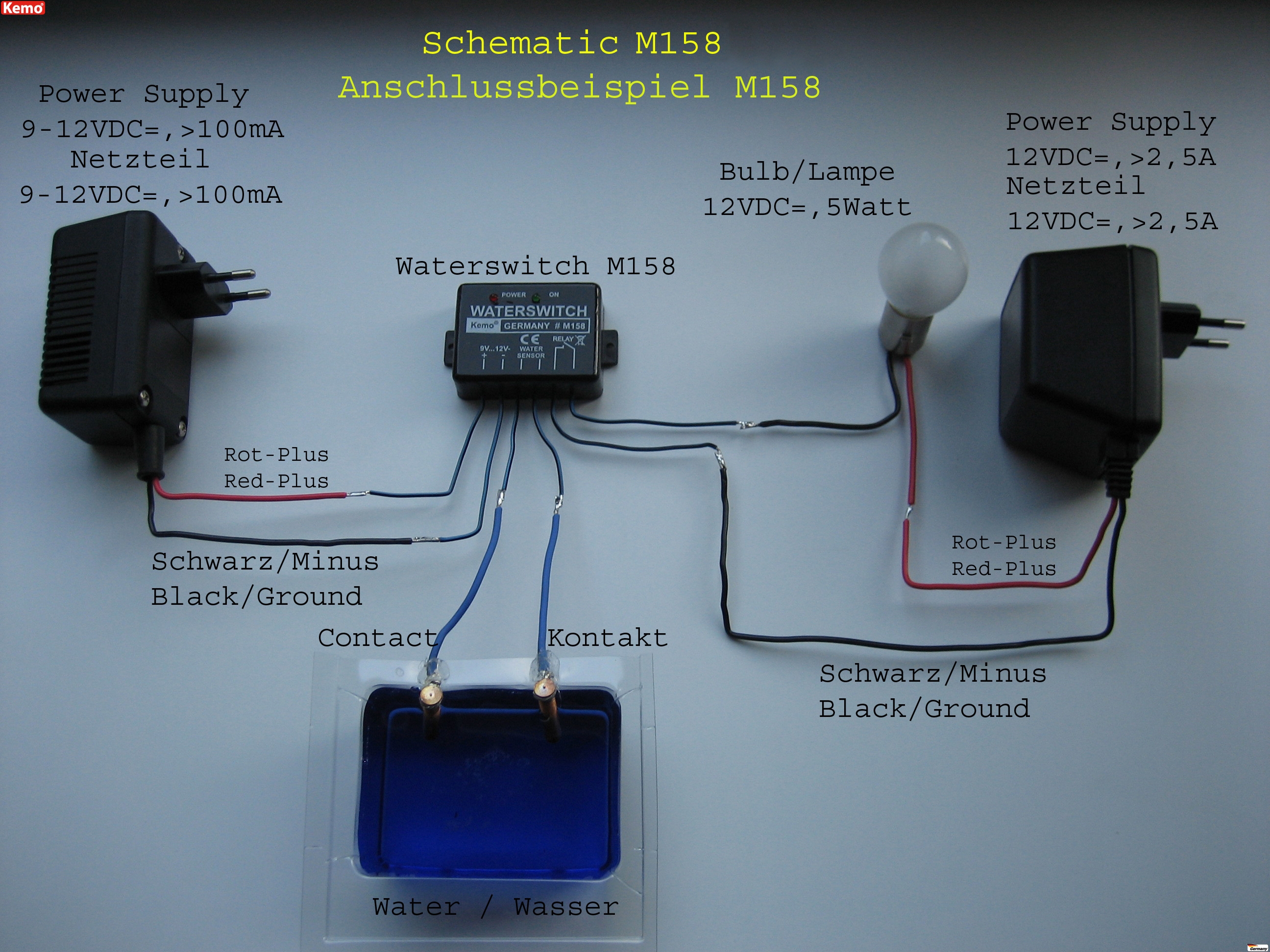

If the 2 sensor connections of the module come into contact with water, the built-in relay switches on. Sirens, other cutoff relays, etc. may be triggered with that.
