M176 - Marten Defence for Motor Vehicles 12 V/DC, splash-proof with IP 65*

EAN: 4024028031767
Datasheet (pdf)
Questions to the item
FAQ
Print preview

Technical Data

Features

splash-proof | 3-fold effectiveness: ultrasound, electric shock, pulsating light

Operating voltage

12 - 15 V/DC (car battery)

Sealing

The control unit including the loudspeaker is splash-proof according to IP 65* (it can be mounted at the entrance holes of the motor vehicle.)

Average power consumption

< 5 mA

Switch-on function

soft start so that the vehicle computer will not be disturbed

Automatic switch-off

if the battery voltage decreases to < 11,5 V (± 5%)

Output voltage

approx. 200 - 300 V/DC

Ultrasonic frequency

approx. 22 kHz ± 10%

Acoustic pressure

max. approx. 100 dB ± 20% (Ultrasonic devices should have a sound pressure level exceeding 100 dB (C) to avoid habituation (ADAC test results). (Source de.wikipedia.org/wiki/Marderabwehr)

Angle of radiation ultrasound

approx. 160°

Loudspeaker

impact sound generator, which makes the upper side of the case oscillate (splash-proof)

Sound

sine, aggressively pulsating

Temperature range

approx. -25°C to +80°C

Functional display

flashing LED (approx. every 5 - 12 sec.)

Cable length high-voltage cable

approx. 4 m (± 10%)

Fuse in the fuse holder

1 A

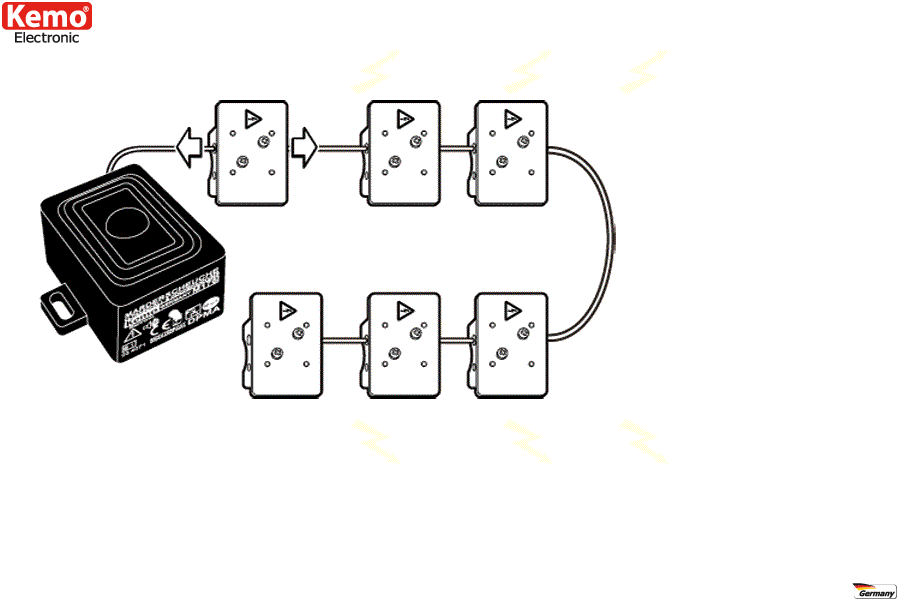

High-voltage contact plates

6 pieces, movable, approx. 62 x 42 mm each, stainless steel

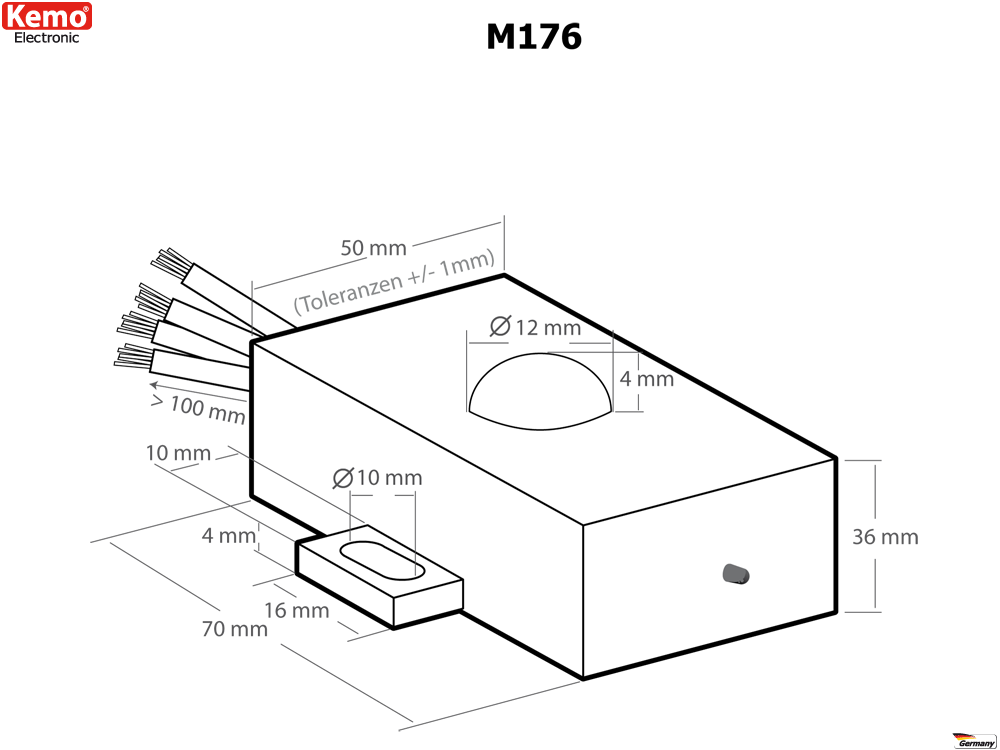

Dimensions basic device

approx. 40 x 50 x 70 mm (without cable entry + fastening feet)

Cable for terminal 15

If this cable is connected with „Positive“, the marten defence disconnects. The marten defence switches on if it is connected with “Negative” or does not receive any signal.

CAN data bus

suitable for vehicles with CAN data bus.

Voltage peaks

The device is protected against voltage peaks in the vehicle power supply up to 40 V (< 20 ms).

Optical determent

The built-in pulsating LED unsettles the nocturnal martens in addition.

Why does the device have no frequency change? Answer

Martens and other small predators emit short and intense warning cries, no siren sounds! Our anti-marten device imitates these tones very naturally and is, therefore, optimal to scare away martens.

*IP65

No penetration of dust at a low pressure of 20mbar in the case. Protected against hose water from any direction against the case (corresponds to 12.5 ltr./minute – garden hose) (test period: 5 minutes)

Chases away the marten through high-voltage plates (movable) charged electrically to approx. 200 - 300 V/DC through electric shock in the motor compartment of the vehicle (only weak current pulses that merely chase the marten away but do not kill it) and through strong, aggressively pulsating ultrasonic sounds. Extremely low current consumption (< 0.005 A), switches off automatically at a battery voltage of < 11.5 V/DC (does not discharge the battery if vehicles are being parked for quite some time). The basic device with the ultrasound radiation is splash-proof according to IP 65* and may be mounted directly at the vestibule opening of the marten in the car. Built-in brightly blinking LED.

Available accessories:
M020 - DC/DC Converter
Z115 - "Ground"-Mat for electroshock devices
Z176 - Extension-set 2 highvoltage plates for M176
