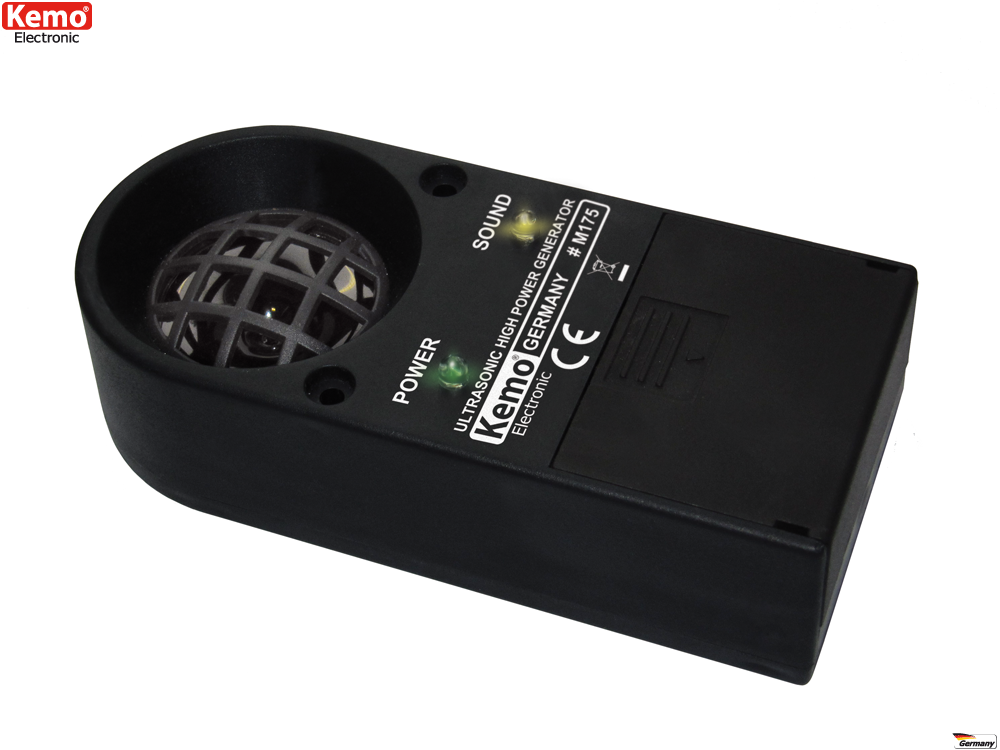

Animal Repeller Ultrasonic High Performance [M175]
Animal Repeller Ultrasonic High Performance
Click to enlarge | image may differ

EAN: 4024028031750
Datasheet (pdf)
Questions to the item
Print preview

Technical Data

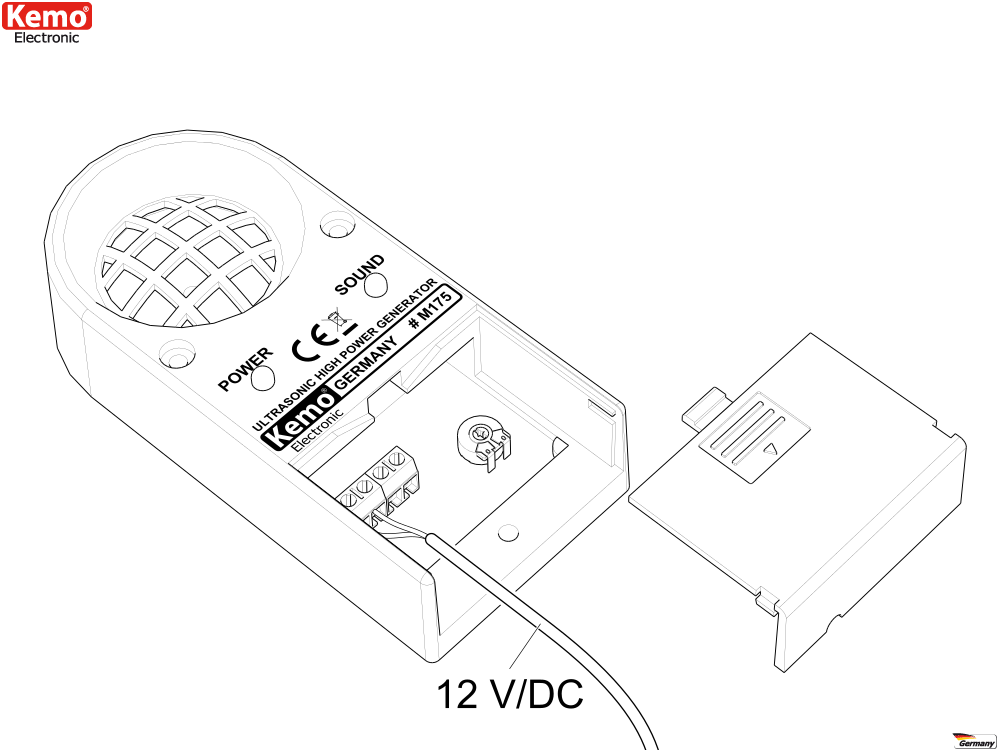

Operating voltage 12 - 14 V/DC (stabilized power supply or 12 V battery > 12 Ah)
Current consumption max. 150 mA
Adjustable frequency range approx. 7 kHz - 38 kHz. Pulsating like a siren
LED displays one LED each for „Power On“ and „Sound Emission“
Connections for up to 2 additional loudspeakers L020 (not enclosed)
Acoustic range max. 100 m, may be extended with additional loudspeakers L020
Acoustic pressure max. 135 dB ± 30% (Ultrasonic devices should have a sound pressure level exceeding 100 dB (C) to avoid habituation (ADAC test results). (Source
Loudspeakers High-power ultrasonic loudspeakers with plastic membrane

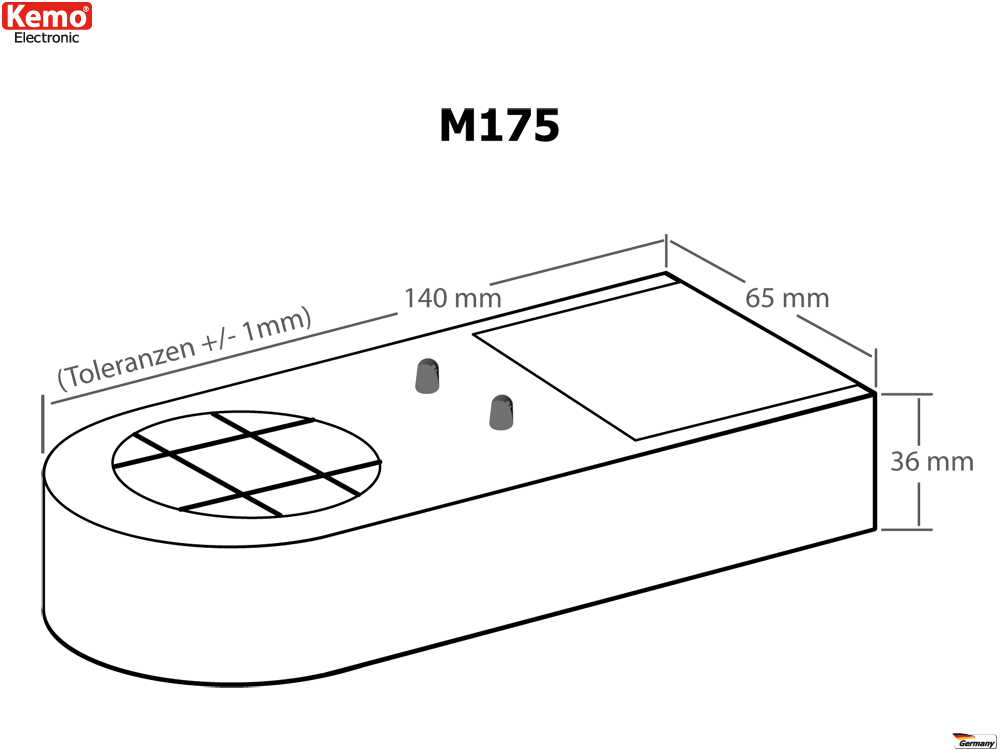

Dimensions approx. 140 x 65 x 37 mm

Frequencies after adjustment of the controller (1 kHz = 1000 Hz) 1 - 2: approx. 8 - 9 kHz | 3: approx. 9 - 10 kHz | 4: approx. 10 - 12 kHz | 5: approx. 12 - 14 kHz | 6: approx. 14 - 16 kHz | 7: approx. 17 - 19 kHz | 8: approx. 26 - 30 kHz | 9 - 10: approx. 38 - 43 kHz
Practical values Birds: approx. 10 - 12 kHz | rodents, predators: approx. 20 - 30 kHz | insects: approx. 27 - 38 kHz

This ultrasonic generator produces very loud and aggressive ultrasonic sounds pulsating like a siren, which many animals perceive as extremely unpleasant and, therefore, try to avoid them as far as possible (very often, but not always!). The generator should be used to keep away rodents, insects, crawling parasites, game and birds. If larger areas shall be exposed to ultrasound up to 2 additional loudspeakers L020 may be connected (not enclosed). The audio frequency may be adjusted between ultrasound (not audible to men) and loud + high sounds that are audible to men.

M175 as wolf repeller

Available accessory: L020 - Additional Ultrasonic Loudspeaker for M175

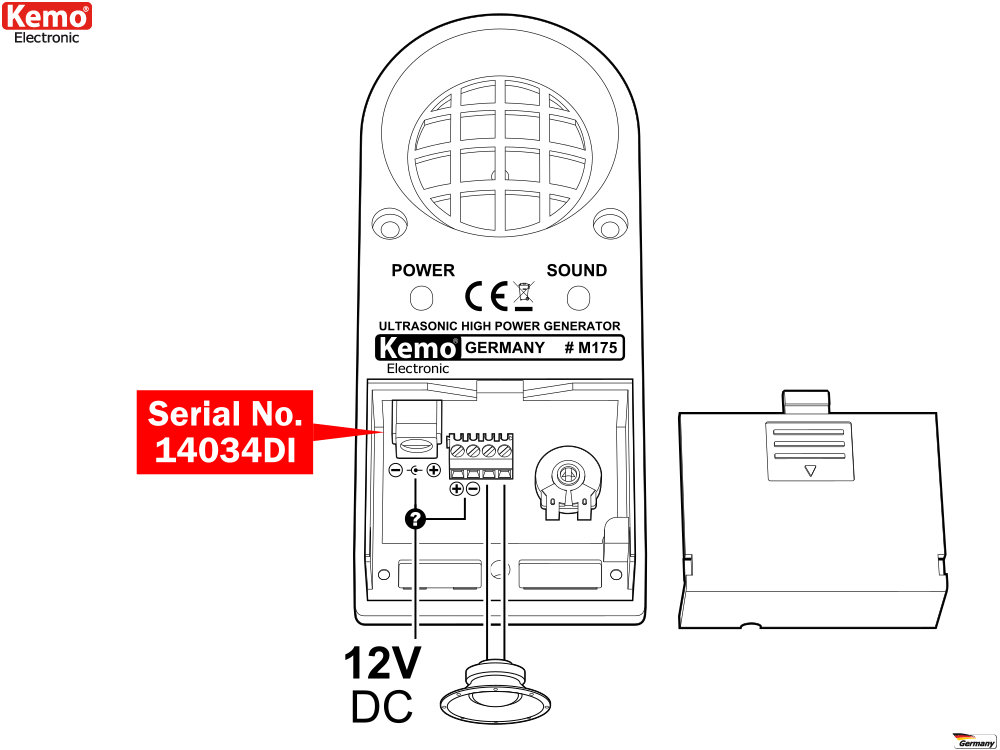

From series 14034DI modules have two connection options for power supply. DC Barrel Power Jack (5,5 x 2,1 mm DC connector) or screw terminal.
