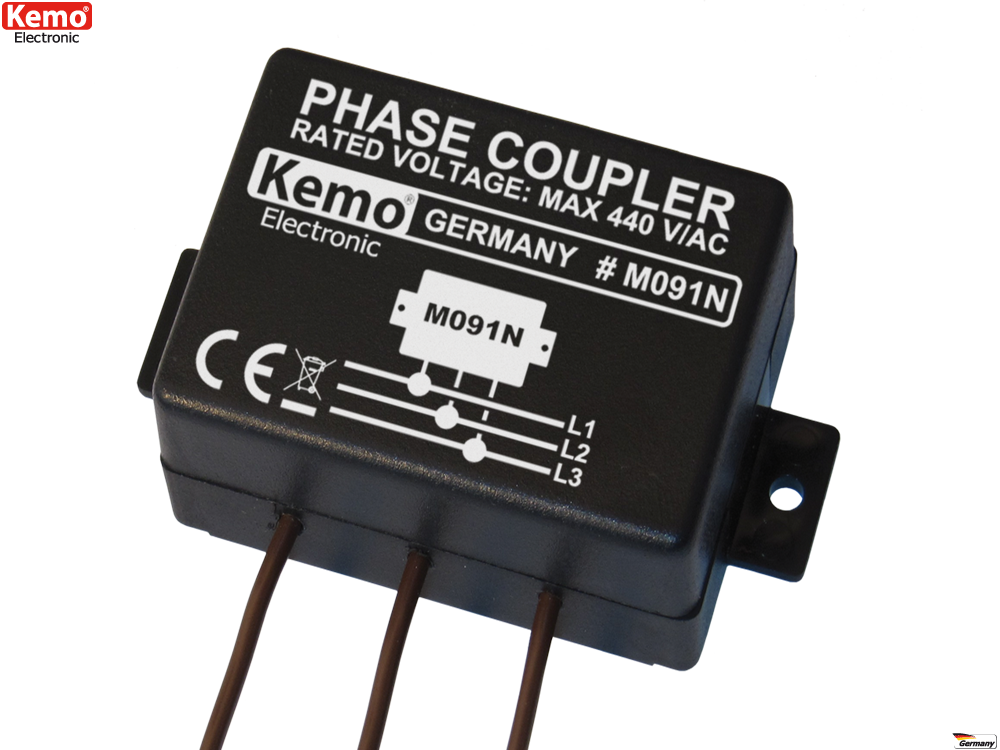

Phase Coupler for Power Line Products [M091N]

Phase Coupler for Power Line Products
Click to enlarge | image may differ

EAN: 4024028030951
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
For electric circuits 110 - 440 V/AC
3-phase version 0,5 - 100 MHz
For power line products 10 - 650 Mbit

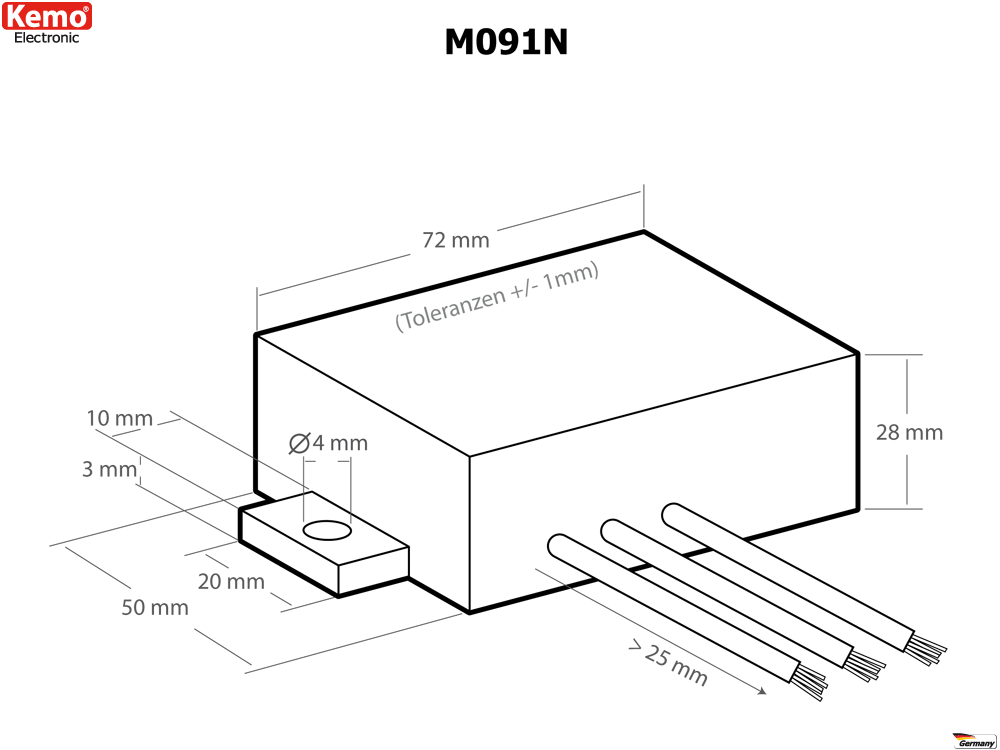

Measures ca. 72 x 50 x 28 mm (without fastening straps)
Installation only by an authorized qualified electrician!

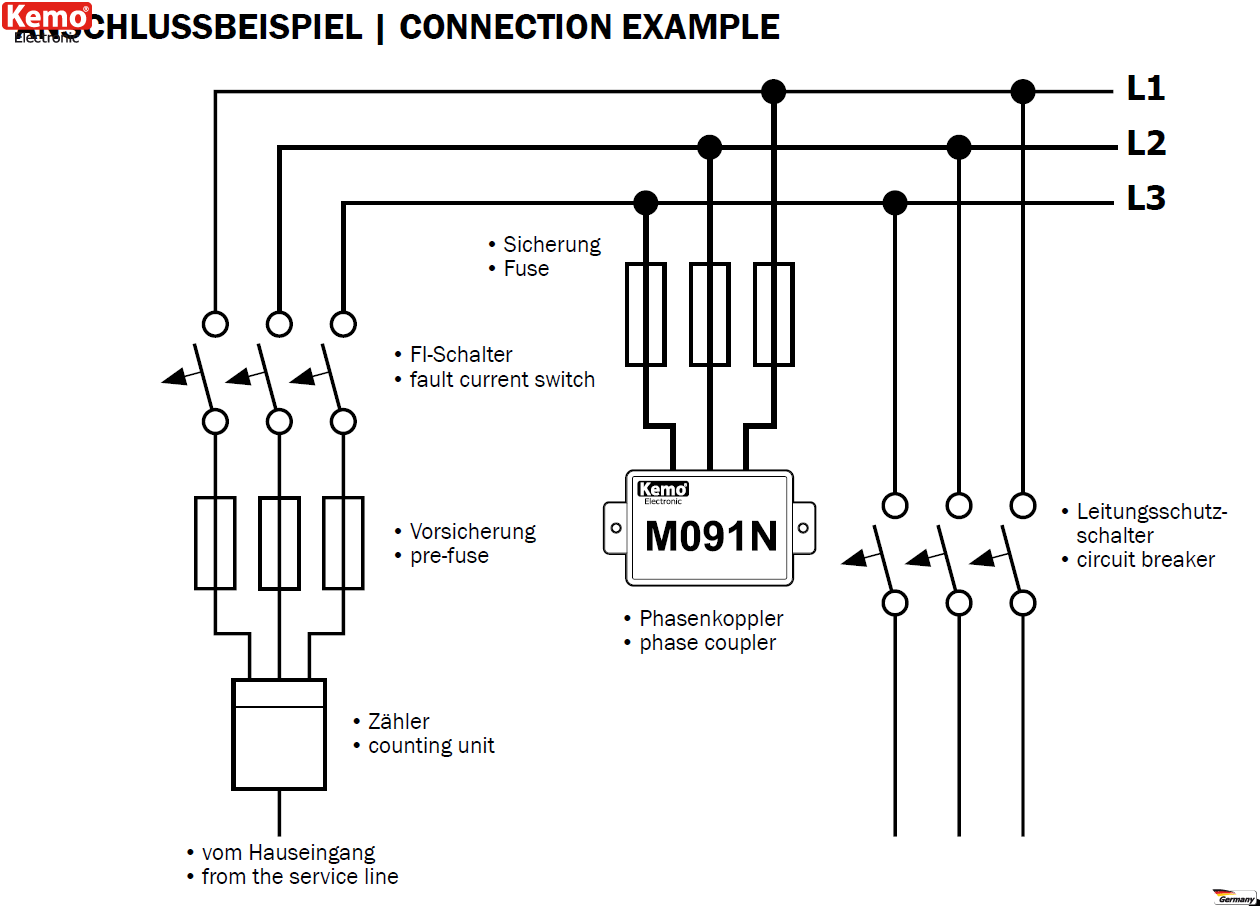

Connects capacitively all 3 in-house mains phases with each other so that transfer rates of up to 650 Mbit via the mains supply can be reached for the internet and computer networking (depending on the nature of the mains supply). If the signal is fed into 1 phase only, the phase coupler connects all 3 phases with each other so that these become permeable to the power line signal and the internet or computer signal will also be available at all other sockets of the in-house network. Also suitable for wireless intercoms! A considerable increase of the range and transmission quality may be achieved!
