| Technical Data |
| Input voltage solar cell panels | 14 - 30 V/DC open circuit voltage
| | Nominal voltage | 12 V/DC
| | Max. input current | 6 A, short-time till 5 Min. 10 A
| | Inrush voltage | battery voltage < ca. 13,4 V/DC
| | Interrupting voltage | battery voltage > ca. 14,4 V/DC
| | Displays | 1 LED for "Charging", 1 LED for "Accu full"
| | Own power consumption | < 2,5 mA (LED switched on)
| | Dimensions | ca. 72 x 50 x 42 mm (without fixing straps) |

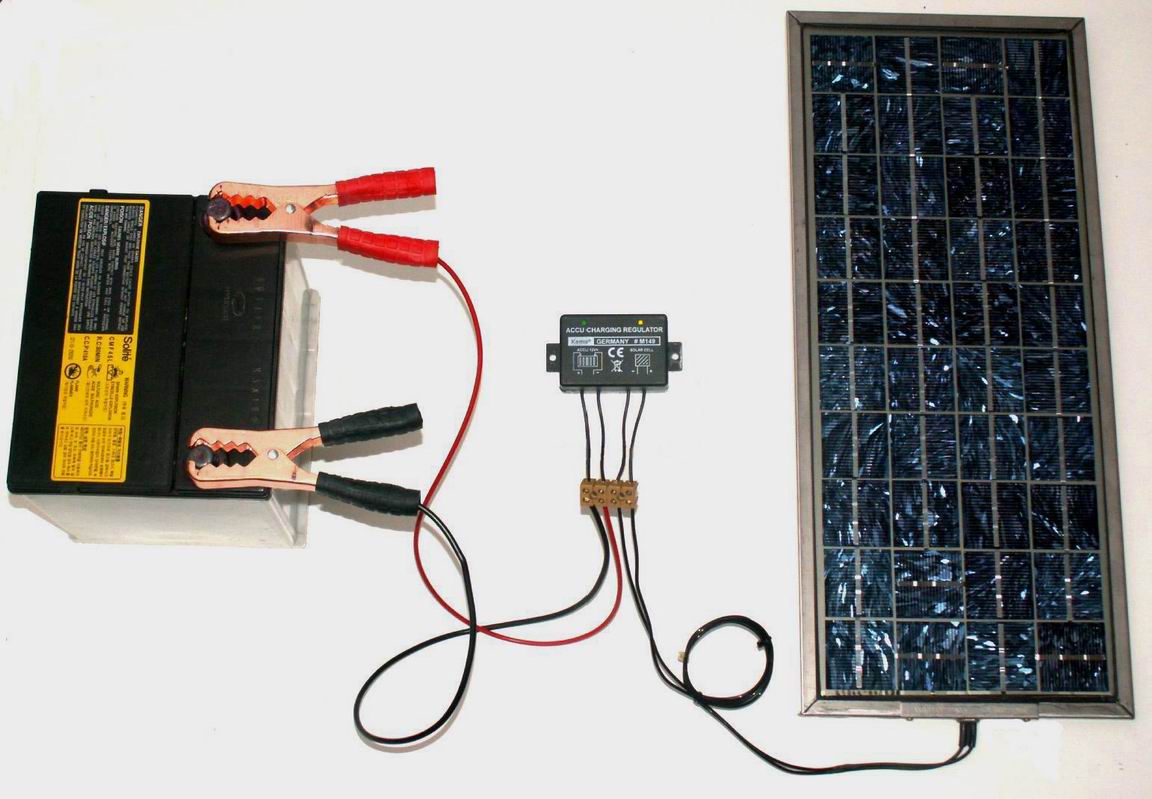

This solar charging controller is connected between a solar cell 12 V/DC
(open circuit voltage 14 - 30 V/DC) and a battery 12 V/DC to prevent an overcharge of the battery. LED displays for "battery full" (approx. 14,4 V/DC) and "charging".
|
