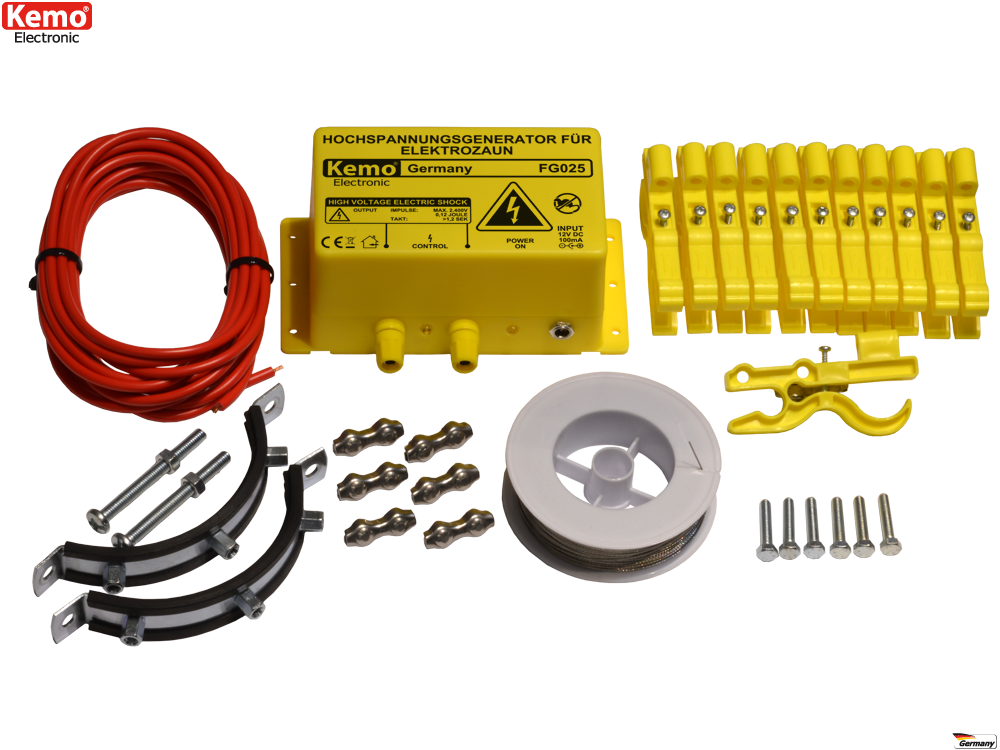

Marten and Raccoon Repeller Electric Fence [FG025SET]

Marten and Raccoon Repeller Electric Fence
Click to enlarge | image may differ

EAN: 4024028020051
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Operating voltage 12 V/DC battery or power supply (not included)
Current input barrel connector-socket 2.1 mm
Current consumption approx. Ø 0.008 A (pulsed, temporary 100 mA)
Output voltage max. 2400 V pulses
Clock pulse interval > 1.2 sec.
Power approx. 0.12 joule (against small animals)
Stainless steel strand Ø approx. 0.7 mm, 7 stranded single wires
Max. wire lengths permitted up to approx. 100 m
Pipe clamp for downpipes Ø approx. 70 - 110 mm
Size high-voltage generator approx. 122 x 72 x 66 mm (without mounting feet and connecting terminals)

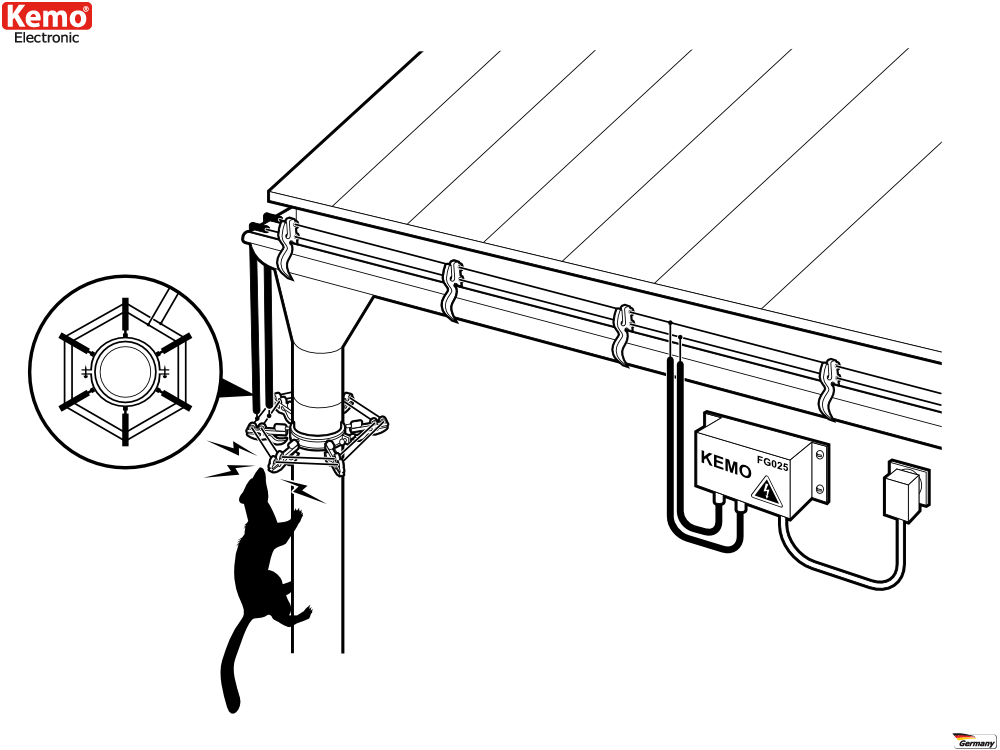

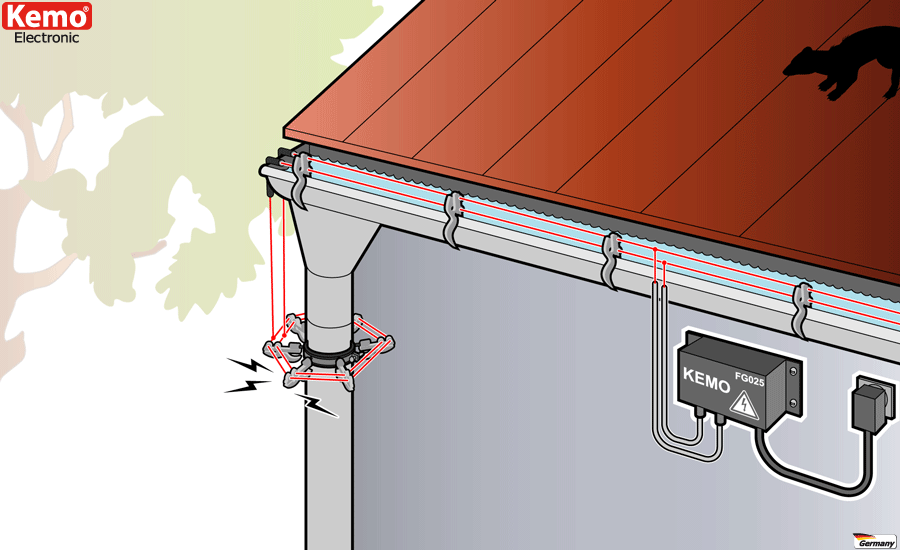

High voltage electric fence for mounting at gutters and downpipes against martens and raccoons in houses. The animals often climb up the downpipes and via gutters into the loft to nest there. An electric shock at this two pole electric fence should expel the animals effectively. A plug power supply 12 V/DC, output at least 100 mA or a 12 V car battery > 12 Ah is still required for operation (both is not included). In both cases the electric cable requires a barrel connector of 5,5 x 2,1 mm.

FG025SET warning sign electric fence (pdf)
