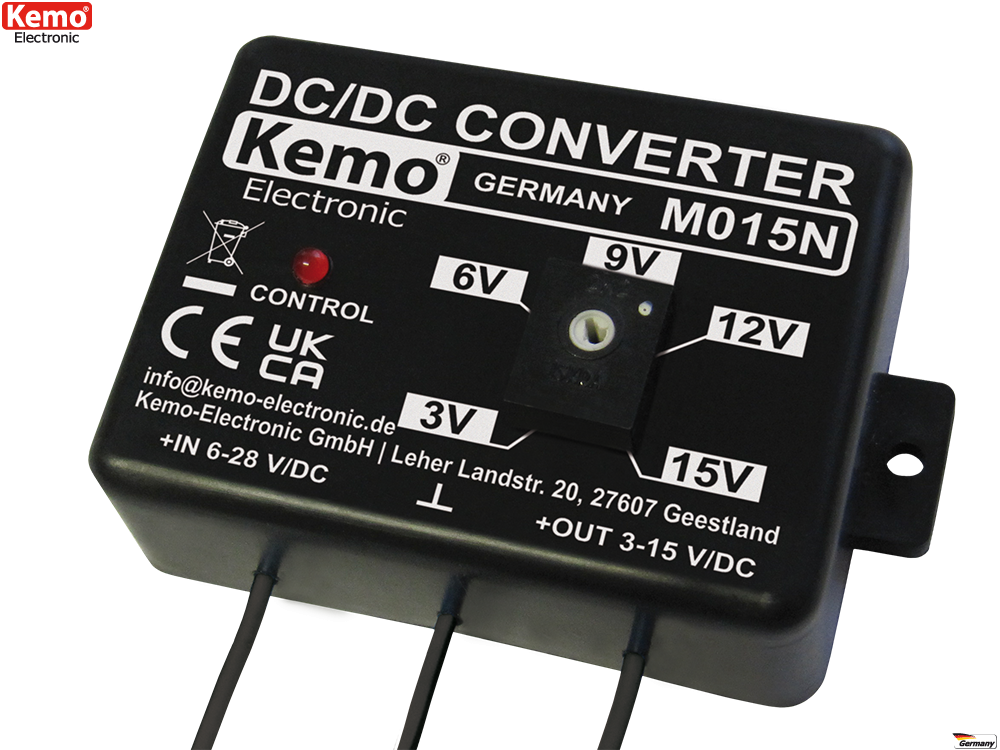

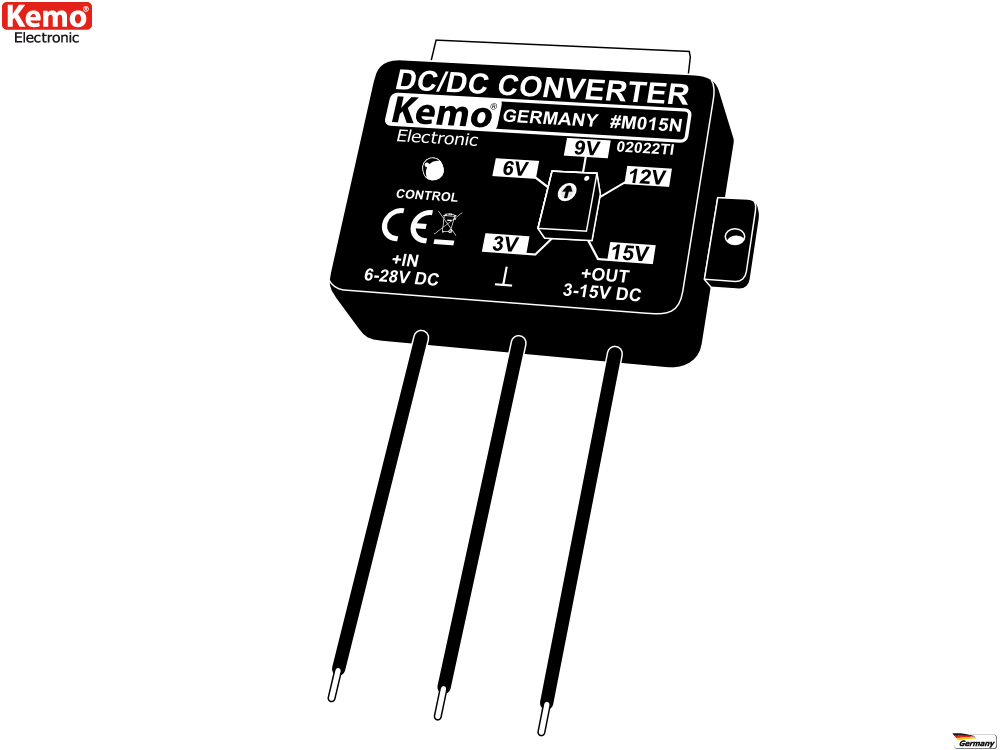

DC/DC Converter, adjustable [M015N]

DC/DC Converter, adjustable
Click to enlarge | image may differ

EAN: 4024028030159
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Input voltage 6 - 28 V/DC
Output voltage adjustable 3 - 15 V/DC (electronically stabilized)
Note The input voltage must be at least 3 V higher than the adjusted output voltage
Max. output current 1,5 A
Max. dissipation approx. 3 W without heat sink, approx. 10 W with heat sink (not enclosed)

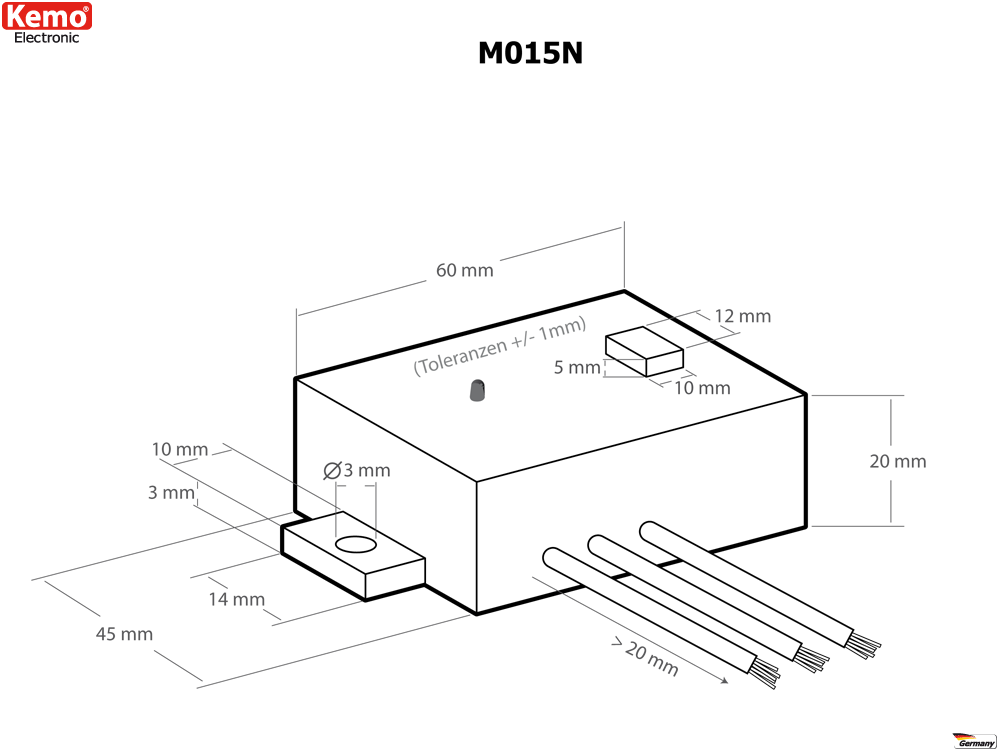

Dimensions approx. 60 x 45 x 20 mm (without fastening straps)

Max. 1.5 A, Input: 6 - 28 V/DC, Output: 3 - 15 V/DC

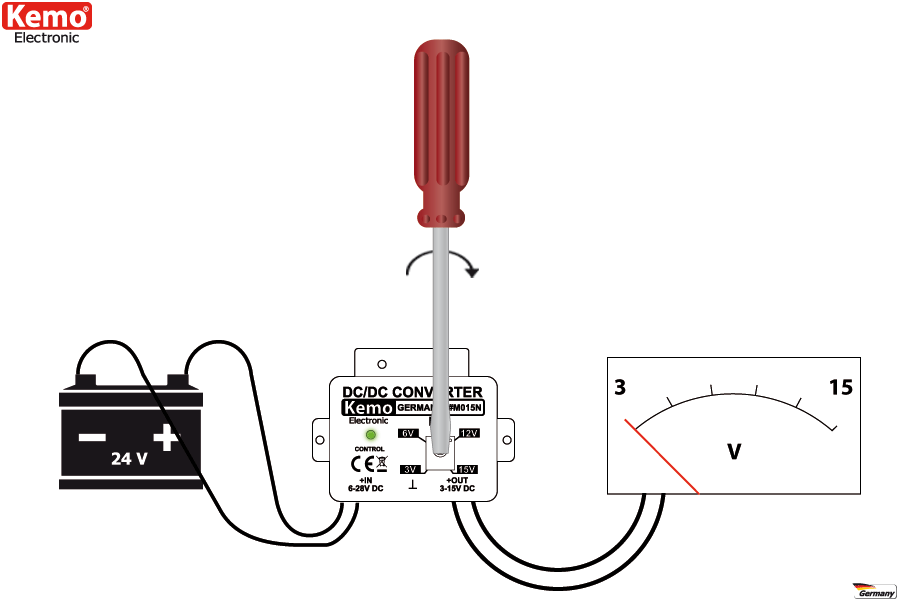

The input voltage must be at least 3 V higher than the adjusted output voltage. The adjusted output voltage is stabilized or short circuit-proof. For operation of appliances with lower voltages at a 12 V or 24 V car battery or power supplies.
