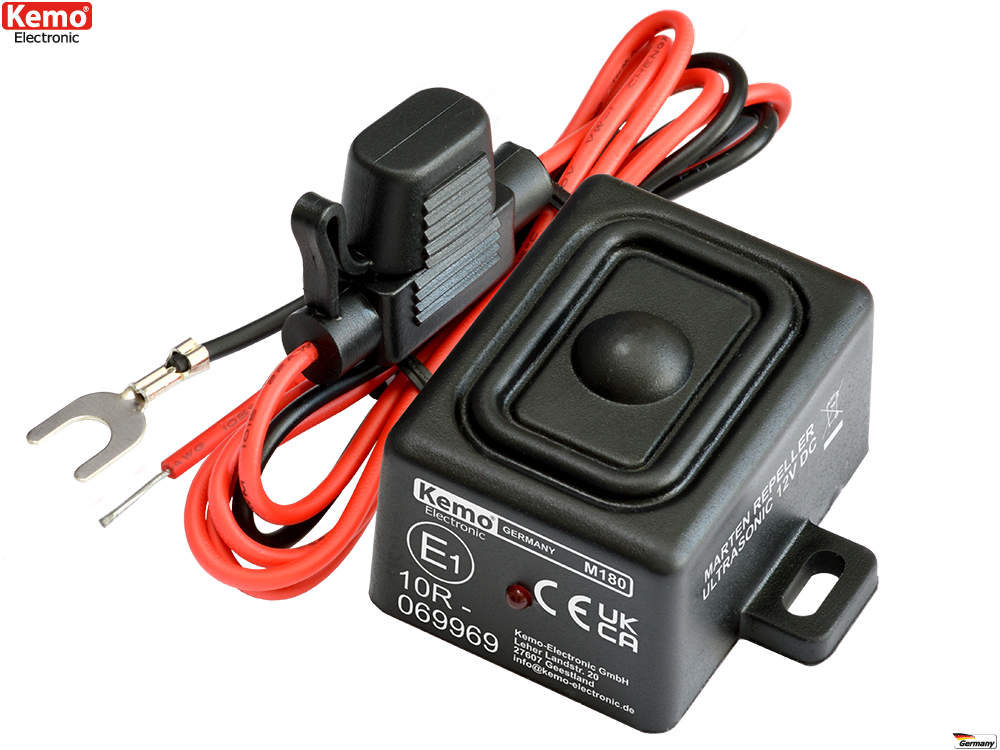

Anti marten device splash proof IP 65* [M180]

Anti marten device splash proof IP 65*
Click to enlarge | image may differ

EAN: 4024028031804
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Features splash-proof | 2-fold effectiveness ultrasound + pulsating light
Operating voltage 11 - 15 V/DC (car battery)
Sealing splash-proof case, according to IP 65* (can be mounted at the entrance holes of the motor vehicle)
Switch-on function soft start so that the vehicle computer will not be disturbed
Average power consumption < 2 mA
Ultrasonic frequency approx. 23 kHz ± 15%
Angle of radiation ultrasound approx. 160°
Acoustic pressure approx. 105 dB (± 20%) (Ultrasonic devices should have a sound pressure level exceeding 100 dB (C) to avoid habituation (ADAC test results). (Source de.wikipedia.org/wiki/Marderabwehr)
Sound Sine, aggressively pulsating

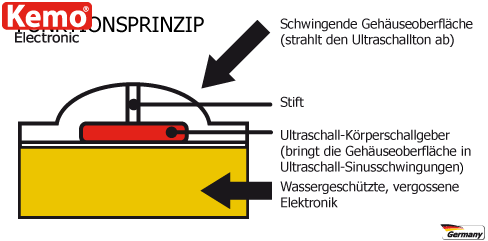

Loudspeaker impact sound generator, which makes the upper side oscillate (splash-proof)
Optical determent pulsating LED (serves as functional display at the same time)
Temperature range approx. -25°C to +80°C
Voltage peaks secured against voltage peaks in the vehicle power supply up to 40 V (< 20 ms)
Fuse in the fuse holder F500 mA

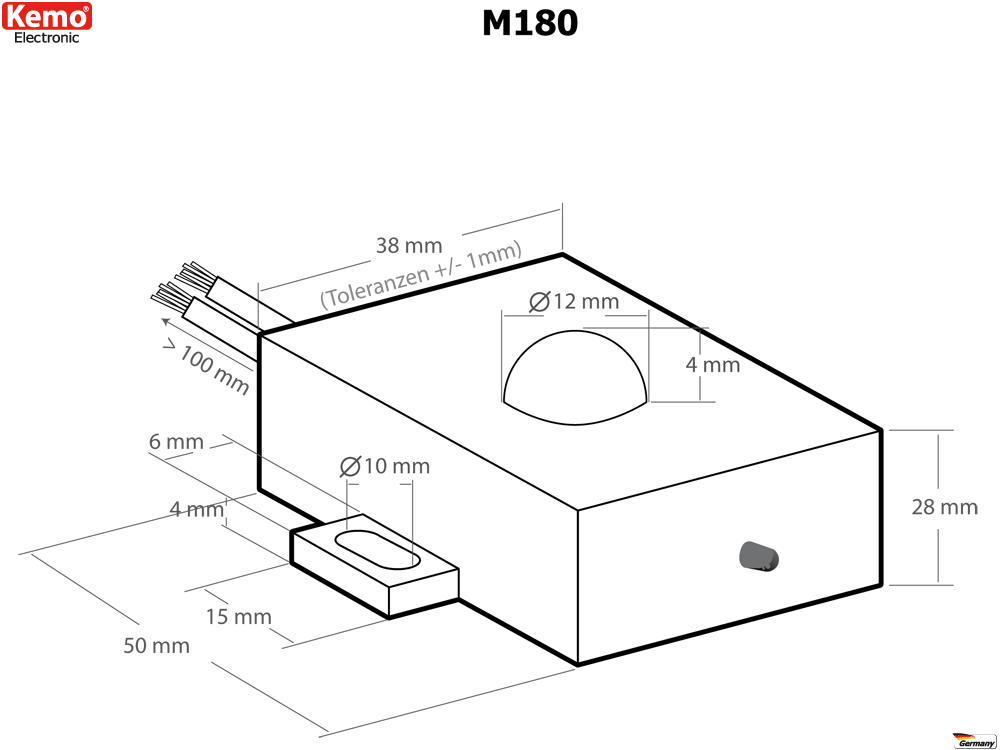

Dimensions approx. 58 x 38 x 31 mm (without fastening straps)
CAN data bus suitable for vehicles with CAN data bus.
Why does the device have no frequency change? Martens and other small predators emit short and intense warning cries, no siren sounds! Our anti-marten device imitates these tones very naturally and is, therefore, optimal to scare away martens.
*IP 65 No penetration of dust at a low pressure of 20 mbar in the case, protected against hose-water from every direction against the case (corresponds to 12.5 ltr./minute e.g. garden hose, test period: approx. 5 minutes, information without engagement).

To repel martens in cars, houses, etc. Produces aggressive ultrasonic sounds inaudible to men, which martens find very annoying and try to avoid if possible. May be mounted at the entrance holes of the cars.

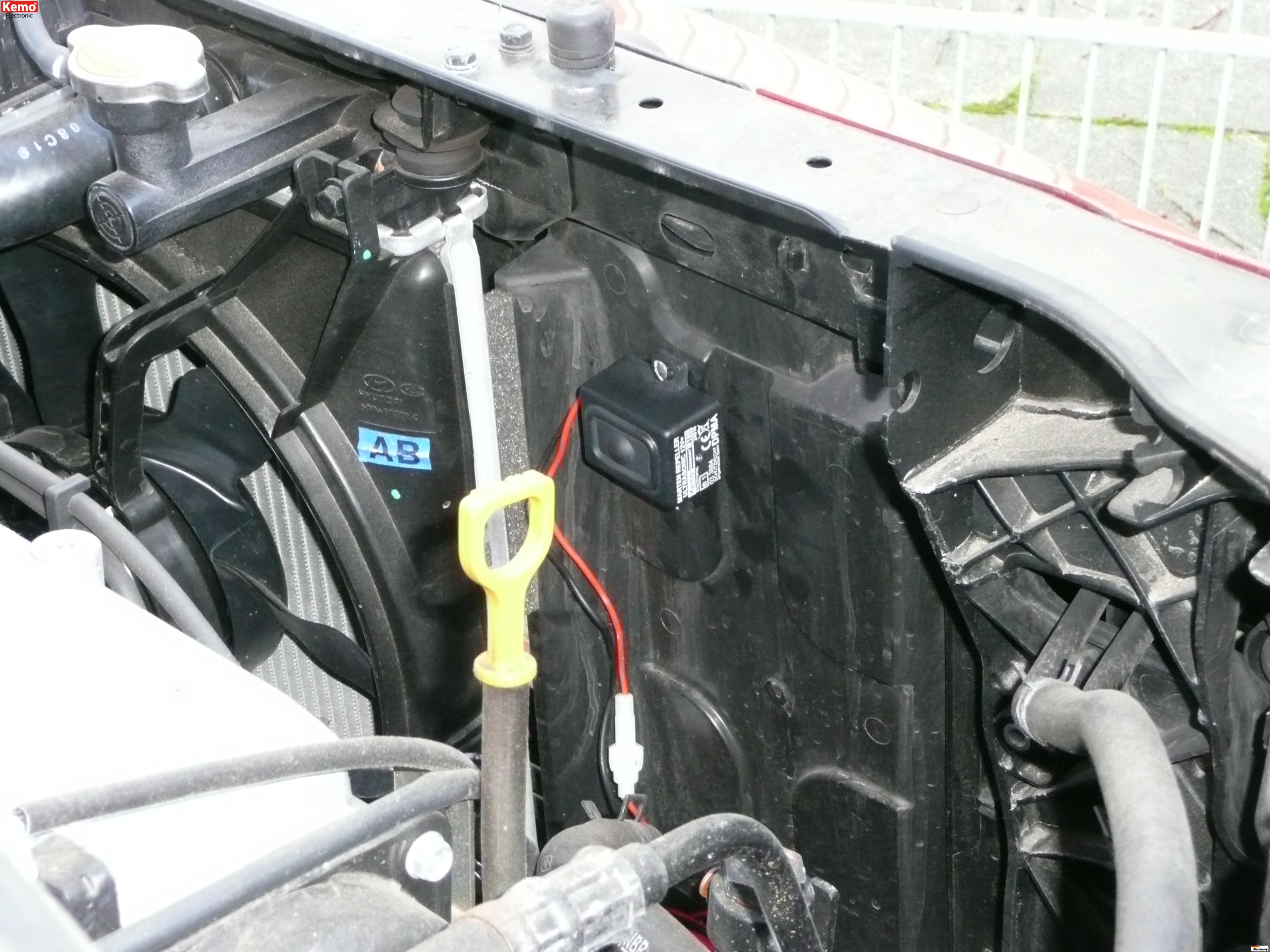

Through the water and dirt resistance, this Marten Device can be mounted on the cars initial openings directly.

Available accessory: M020 - DC/DC Converter

This clip only shows that the module is waterproof, it is not suitable for permanent use under water.
