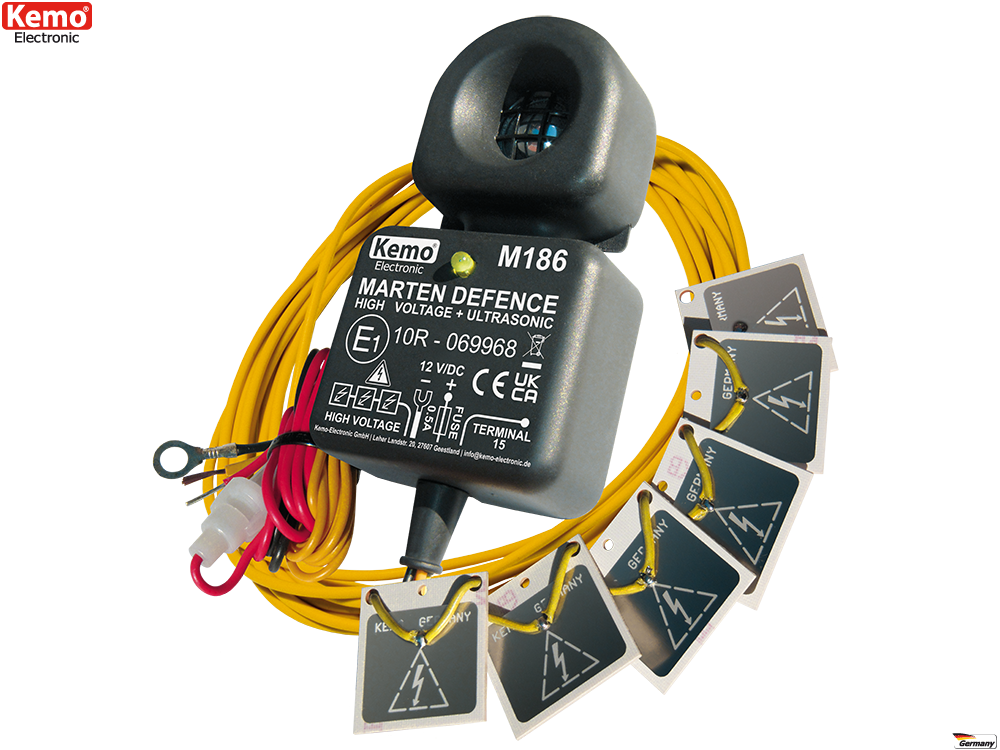

Marten Defence for Motor Vehicles 12 V/DC [M186]

Marten Defence for Motor Vehicles 12 V/DC
Click to enlarge | image may differ

EAN: 4024028031866
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Operating voltage 12 - 15 V/DC (car battery)
Average power consumption < 5 mA
Automatic shutoff if the battery voltage decreases to < 11,5 V (± 5%)
Output voltage approx. 200 - 300 V/DC
Ultrasonic frequency approx. 22 kHz ± 10%
Acoustic pressure max. approx. 100 dB ± 15%
Angle of radiation ultrasonics approx. 150 degree
Loudspeaker special ceramic piezoelectric loudspeaker with spherical membrane of aluminium
Temperature range approx. -25 - +80°C
Functional display flashing LED (approx. every 5 - 12 sec.)
Cable length high-voltage cable 1 x approx. 4 m (± 10%)
Fuse in the fuse holder 500 mA
High-voltage contact plates 6 pieces, approx. 40 x 40 x 1,5 mm each
Dimensions basic instrument approx. 125 x 70 x 31 mm (without cable entry point + LED).
Suitable for vehicles with Can Bus.

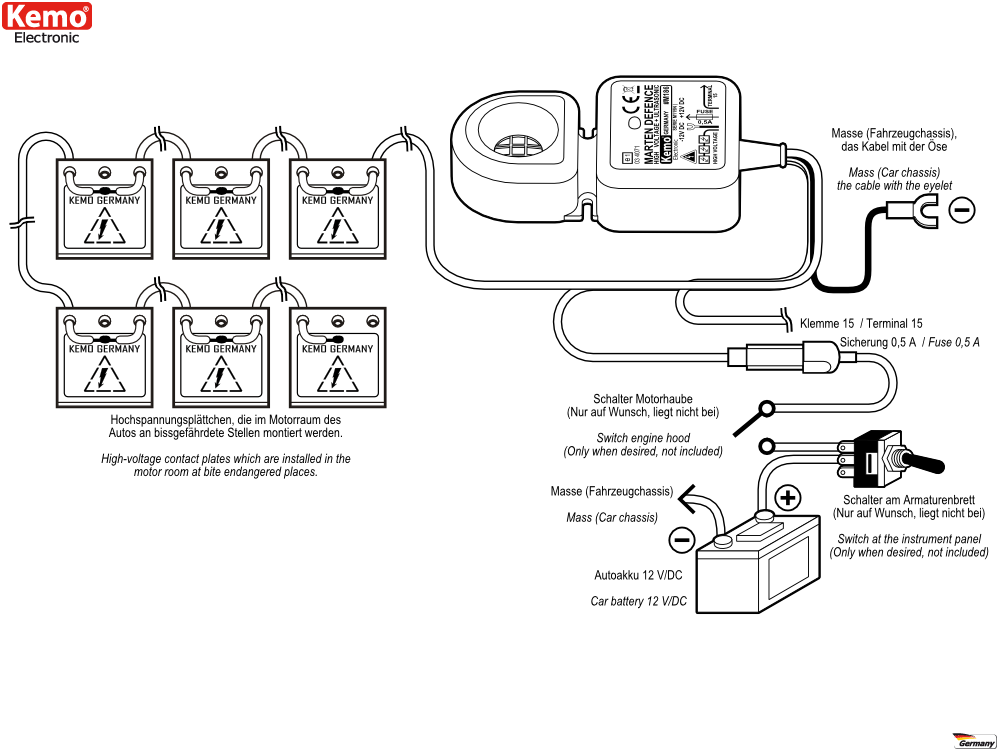

Cable for terminal 15 If this cable is connected with “positive“, the marten defence disconnects. The marten defence switches on if it is connected with “negative” or does not receive any signal.

Chases away martens by means of small high-voltage plates charged electrically to approx. 200 - 300 V/DC through electric shock in the engine compartment of the vehicle (only weak current pulses that chase the marten away, but do not kill it) and through strong, aggressively pulsating ultrasonic sounds. Extremely low power consumption (< 0.005 A), switches the battery voltage of < 11.5 V automatically off (does not discharge the battery completely if vehicles are being parked for quite some time).
