| Technical Data |
| Operating voltage | 9 V/DC voltage are ideal (max. 12 V/DC), (please do only employ a stabilised power supply)
| | Current consumption | "Ready" < 10 mA. In case of contact with water when the relay picks up < 90 mA each with 9 V/DC
| | LED displays | 1 LED for the indication of readiness “POWER”, 1 LED for the indication “ON”, if the relay switches on
| | Connections | via free cables
| | Approved cable length towards the water sensors | max. 5 m with normal cable, max. 100 m with shielded cable, if the shielding braid is connected with the negative pole of the distribution voltage
| | Dimensions | sealing case approx. 59 x 44 x 20 mm (without fastening straps) |

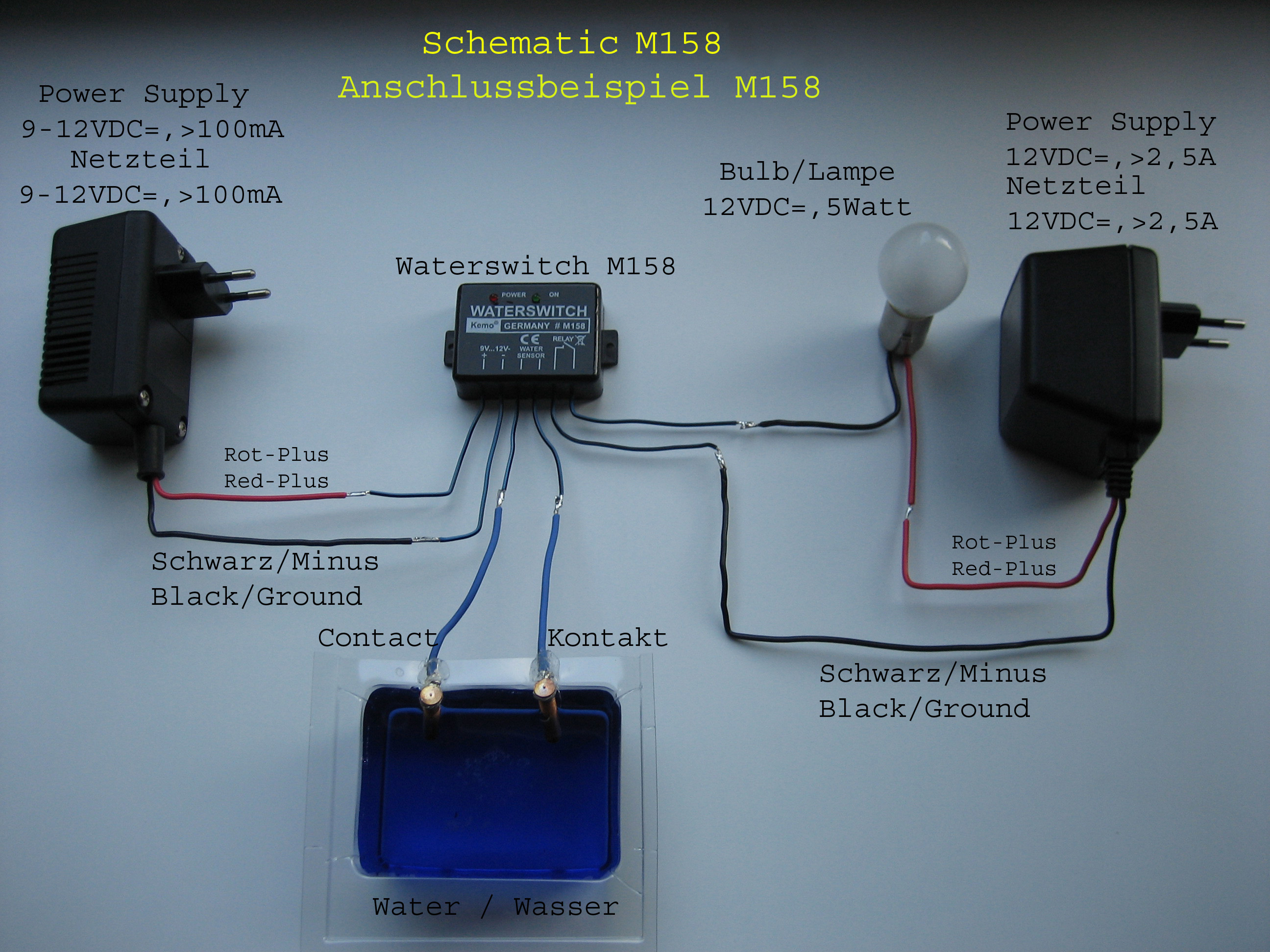

If the 2 sensor connections of the module come into contact with water, the built-in relay switches on. Sirens, other cutoff relays, etc. may be triggered with that.
|
