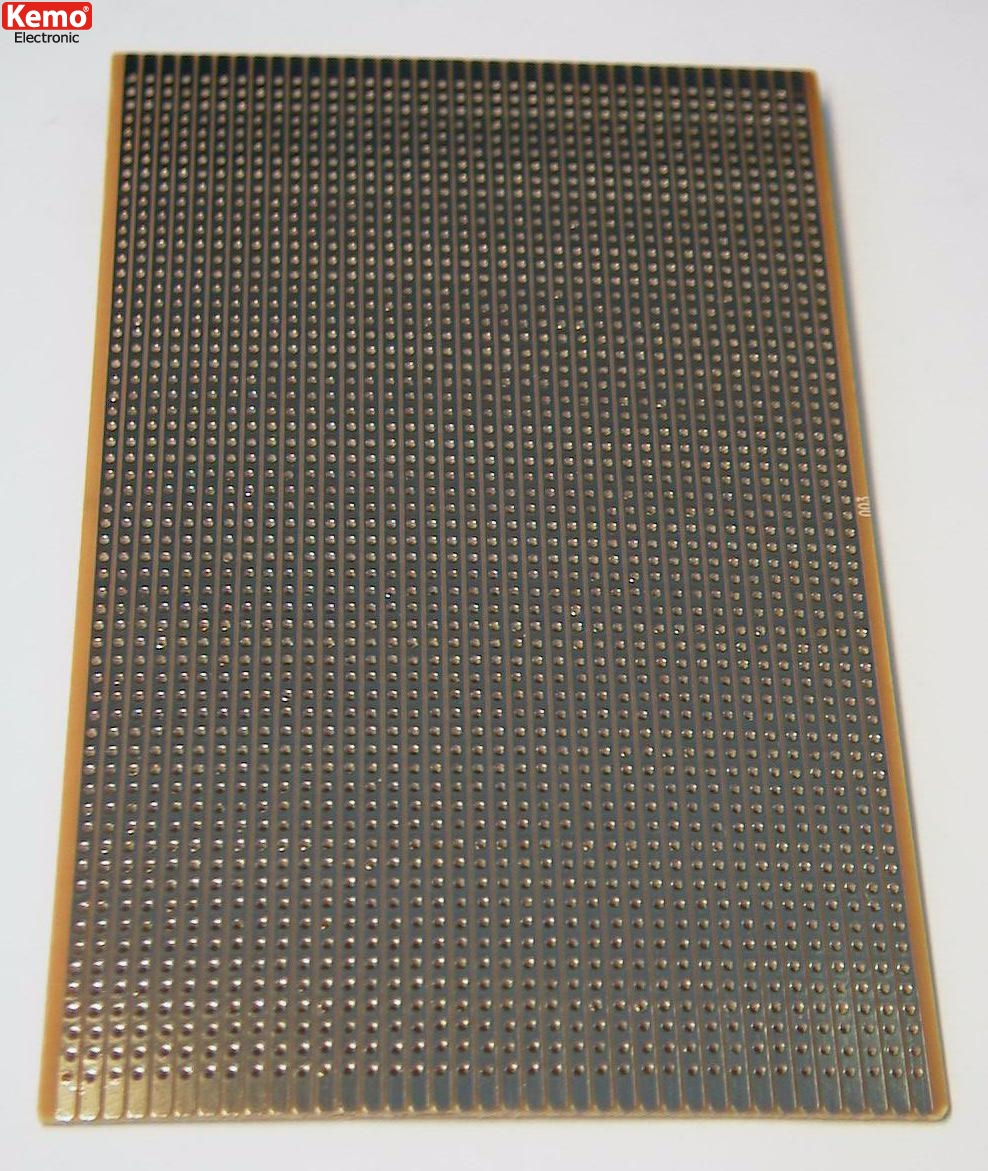

Experimental board - strip grid [E003]

Experimental board - strip grid
Click to enlarge | image may differ

EAN: 4024028070032
Questions to the item
FAQ
Print preview


Technical Data
One-side copper layer approx. 35 µm
Material FR2 (Phenolic paper)
Hole distance 2.54 mm
Hole Ø approx. 1 mm
Thickness approx. 1.5 mm
Dimensions approx. 100 x 160 mm

Experimental board in euro measurement, flash-gold plated (better for soldering "lead-free").

FR2 Phenolic paper
