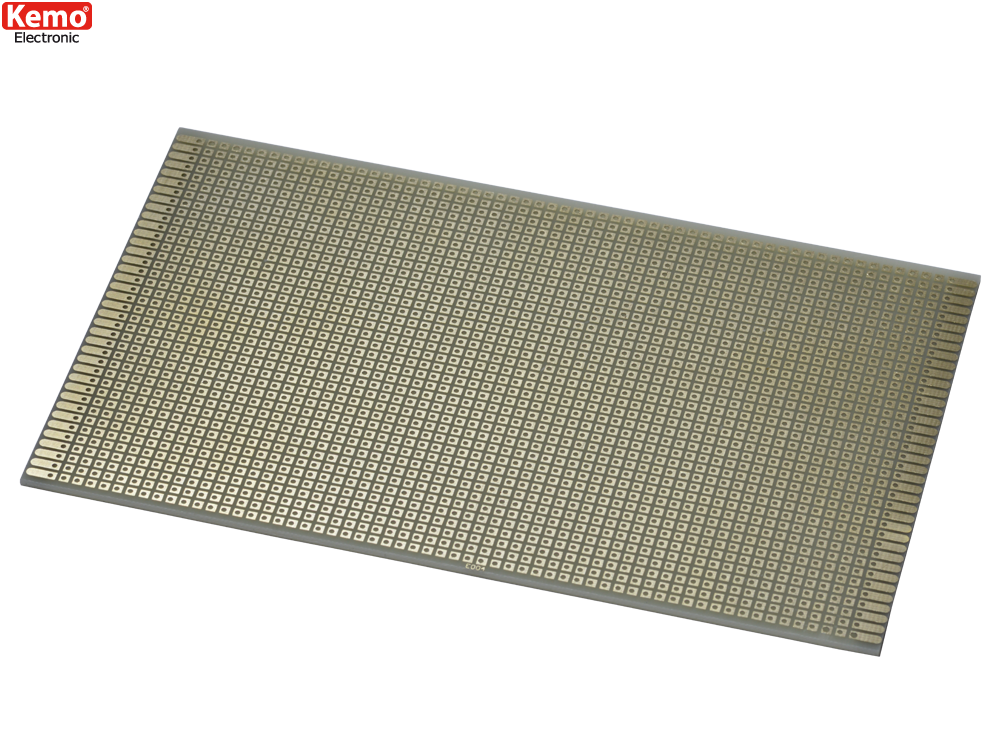

Experimental board - dot grid [E004]

Experimental board - dot grid
Click to enlarge | image may differ

EAN: 4024028070049
Questions to the item
FAQ
Print preview


Technical Data
One-side copper layer approx. 35 µm
Material FR4 fiberglass laminate
Hole distance 2.54 mm
Hole Ø approx. 1 mm
Thickness approx. 1.5 mm
Dimensions approx. 100 x 160 mm

Experimental board in euro measurement, flash-gold plated (better for soldering "lead-free").

FR4 fiberglass laminate
