| Technical Data |
| Operating voltage | 9 V battery (alkali)
| | LED-connection | socket strip
| | LED-testing currents | optional approx. 0.5, 1, 2.5, 5, 10, 20, 35, 50 mA

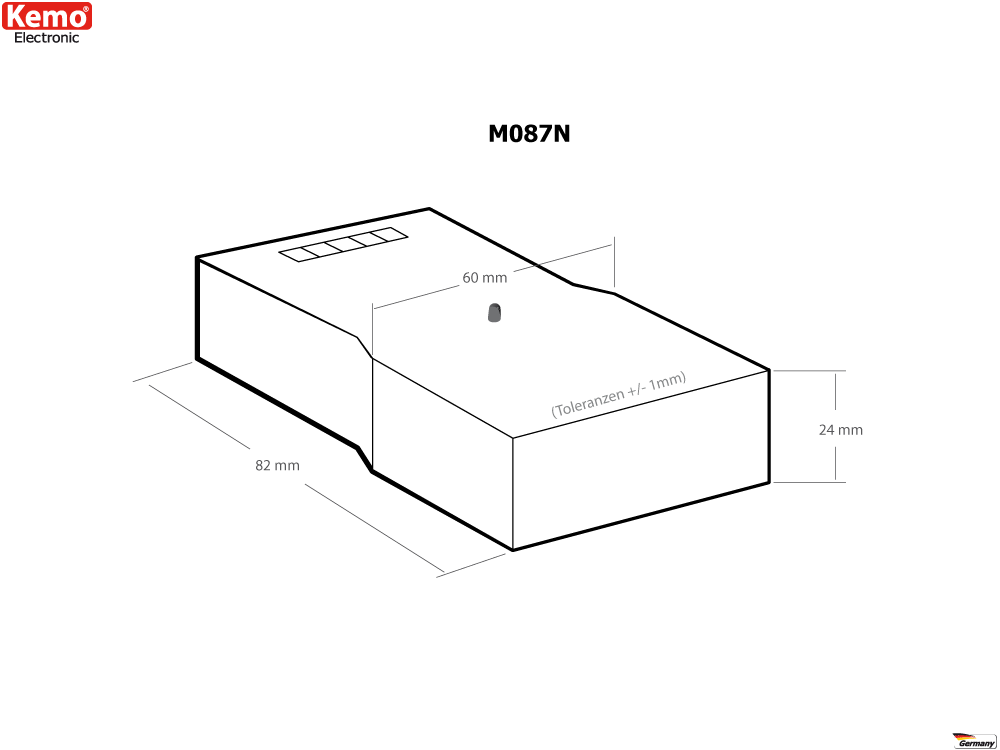

| | Dimensions | approx. 60 x 82 x 24 mm |

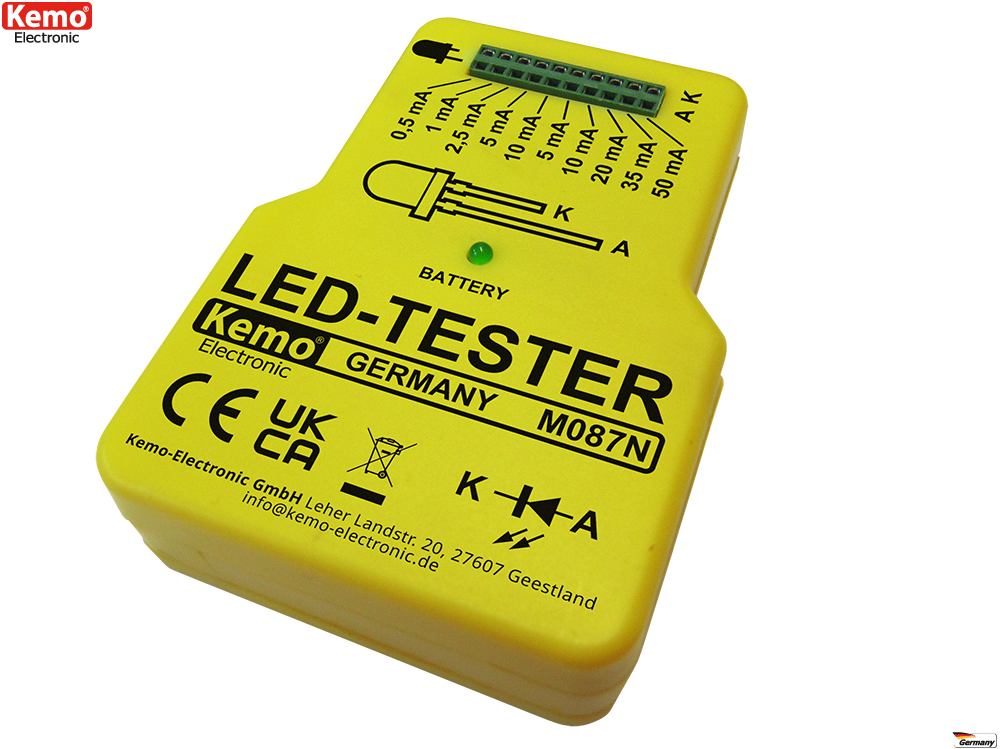

With the aid of this test module it is made
possible to carry out tests of wired light emitting
diodes in order to check function, brightness, colour
and polarity. In order to facilitate selection of LED‘s
of equal brightness, there have been placed two
test sockets with the same currents (5 mA/10 mA)
side by side. Necessary: battery 9 V (alkali).
|
