Amplifier 1 W [B182]

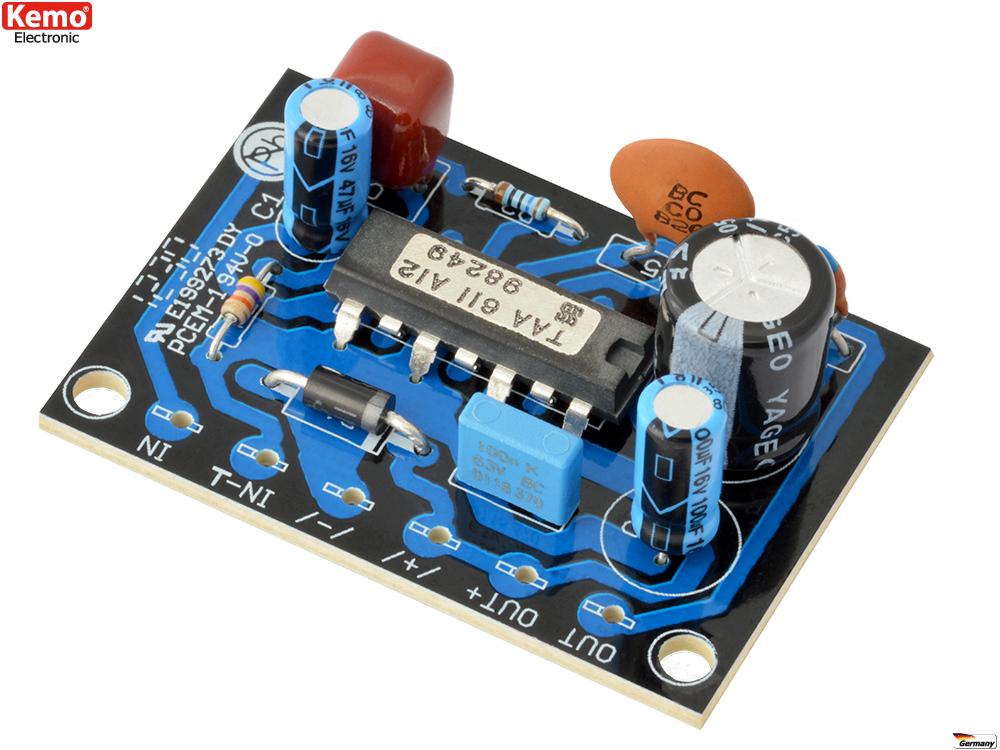

Amplifier 1 W
Click to enlarge | image may differ

EAN: 4024028011820
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Kit To solder yourself
Power max. 2 W music power
Operating voltage 6 - 9 V/DC
Current consumption max. 380 mA
Loudspeaker connection 8 ohm
Frequency range approx. 20 - 20.000 Hz
Sensitivity approx. 80 mV
Dimension of the board approx. 44 x 19 mm

Small universal amplifier with a peak sound capacity of 2 W. A modern, low cost amplifier for many purposes. It works with an 8-pin DIP IC, the design is very small, so that this amplifier can be integrated into many devices.

Fitting case: G027N - Plastic Case approx. 72 x 50 x 35 mm
