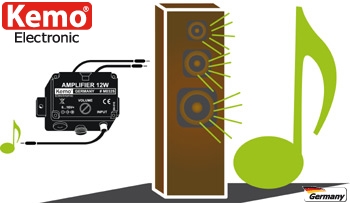

Universal Amplifier 12 W "Plug & Play" [M032S]

Universal Amplifier 12 W "Plug & Play"
Click to enlarge | image may differ

EAN: 4024028030302
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Operating voltage 6 - 16 V/DC
Current consumption max. 800 mA
Input sensitivity <80 mV
Loudspeaker connection 4 - 16 Ohm
Music power max. 12 W with 16 V/DC at a 4 Ohm Loudspeaker
Frequency response approx. 40 - 20.000 Hz
Power supply jack for mains plug 2,1 mm

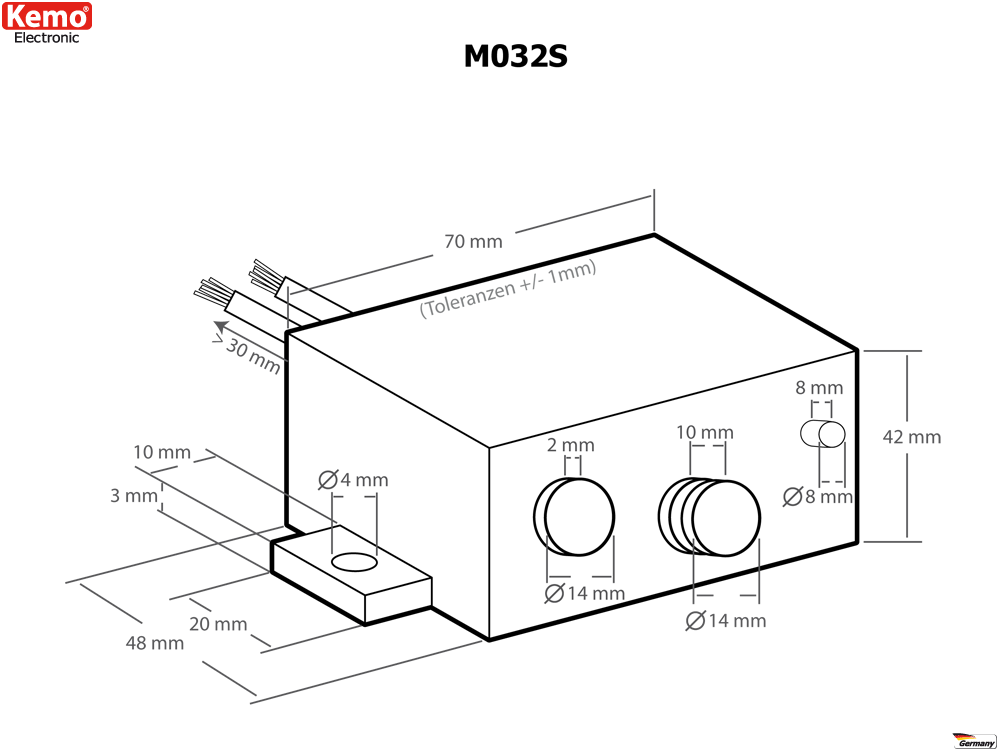

Dimensions approx. 73 x 60 x 43 mm (without fastening straps)

Amplifying module with jacks used for the signal input and for the power supply. Inserted loudspeaker regulator and loudspeaker connection are over the cables.

Available accessory: M040N - Universal preamplifier
