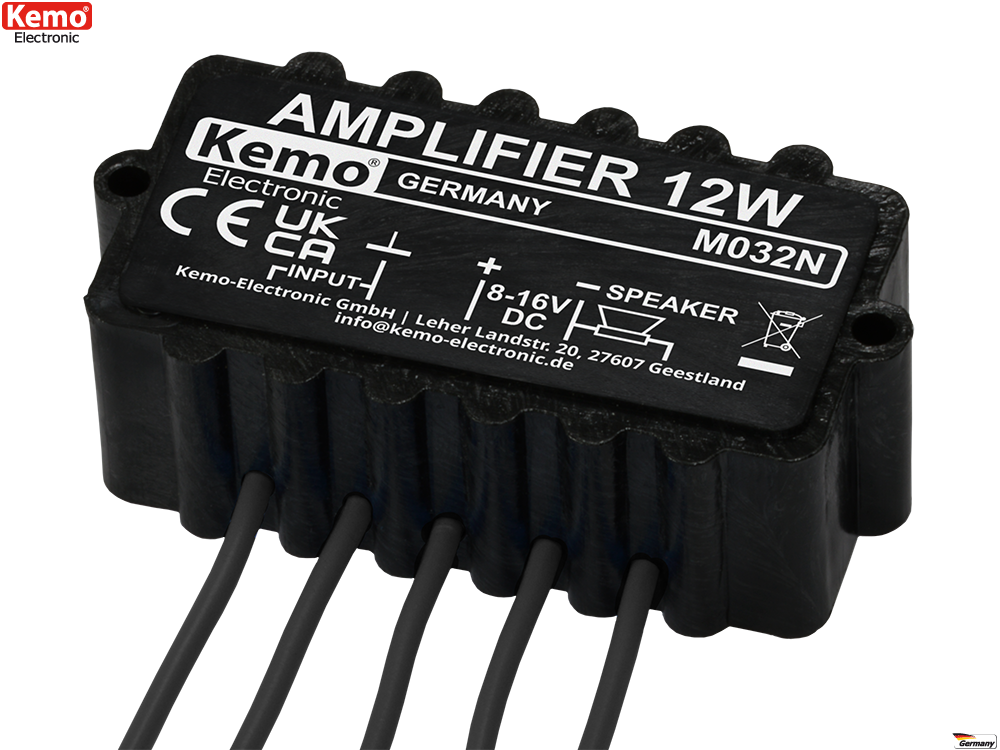

Amplifier 12 W, universal [M032N]

Amplifier 12 W, universal
Click to enlarge | image may differ

EAN: 4024028030326
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Operating voltage 8 - 16 V/DC
Current consumption max. 800 mA
Input sensitivity < 80 mV
Loudspeaker connection 4 - 16 ohm
Music power max. 12 W with 16 V at a 4-ohm loudspeaker
Frequency response approx. 40 - 20.000 Hz

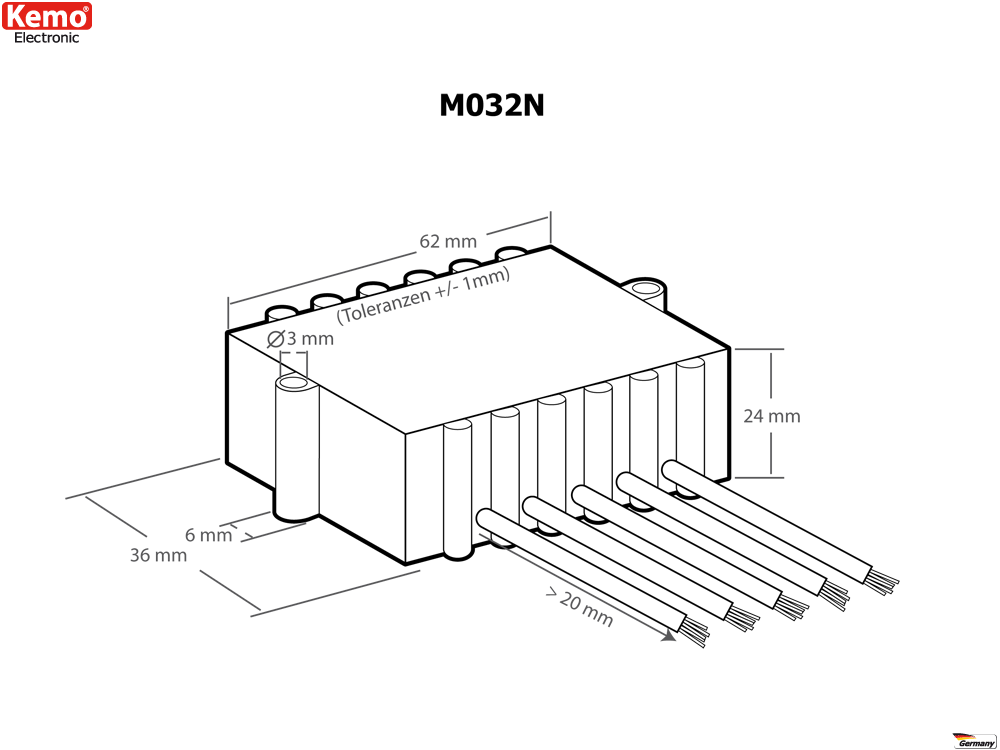

Dimensions approx. 70 x 36 x 23 mm (without fixing straps)

Robust amplifier module for universal use. The module is cast humidity-proof and shake-proof. The casting compound and the module case consist of a special, highly heat-conductive plastic. So no additional heat sinks are needed. The module is protected electronically against overheating and overload.

Available accessory: M040N - Universal preamplifier
