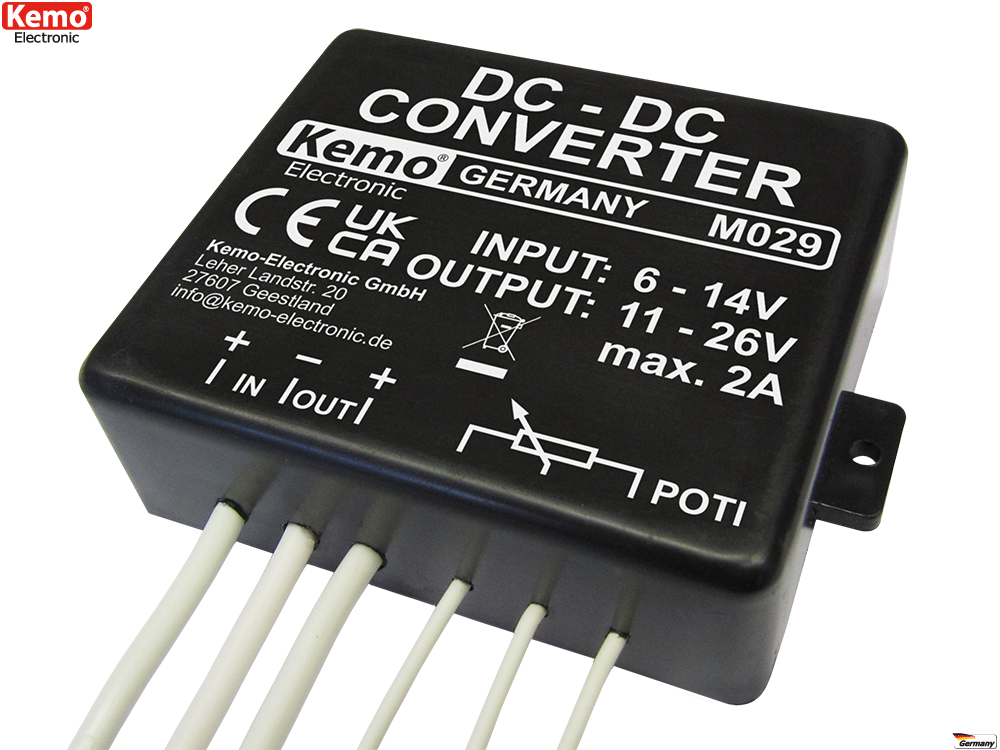

DC/DC Converter [M029]

DC/DC Converter
Click to enlarge | image may differ

EAN: 4024028030296
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Input voltage 6 - 14 V/DC
Output voltage 11 - 26 V/DC direct current (depending on load)
Output current max. 2 A

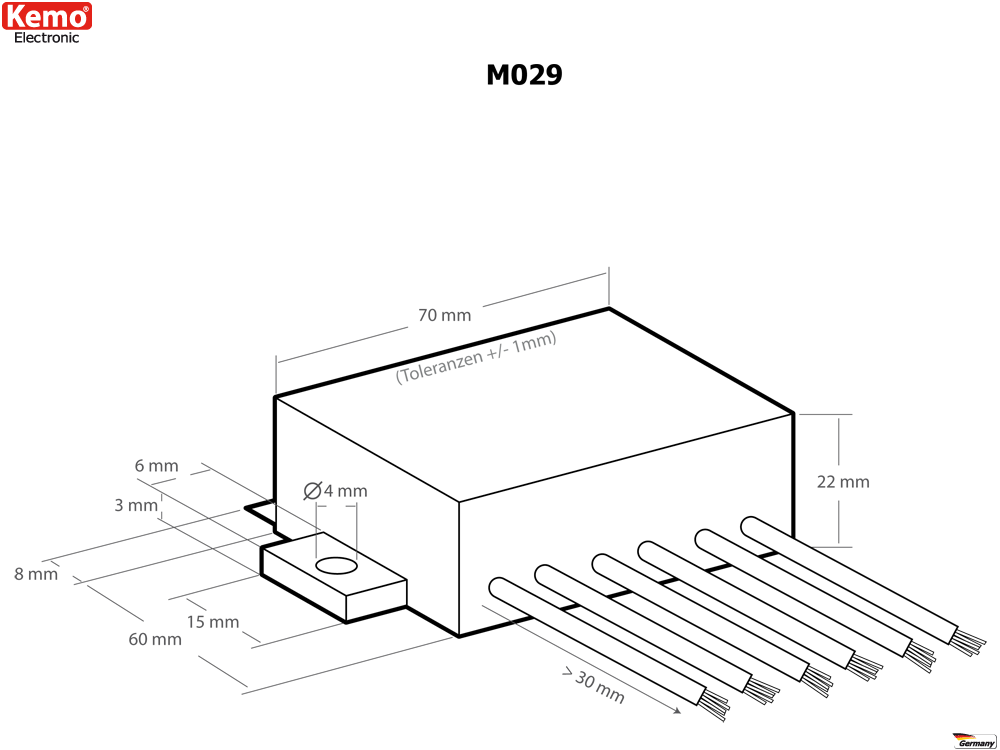

Dimensions approx. 70 x 60 x 23 mm (without fastening straps)

DC/DC converter input: 6 - 14 V/DC, output: 11 - 26 V/DC
This electronically controllable DC voltage converter transforms a low input voltage in to a nearly twice as high output voltage. Output voltage decreases whenever there is a higher load. With the help of an additional potentiometer of 4,7 k lin. output voltage can be limited towards higher rates at input voltages of over 10 V.
