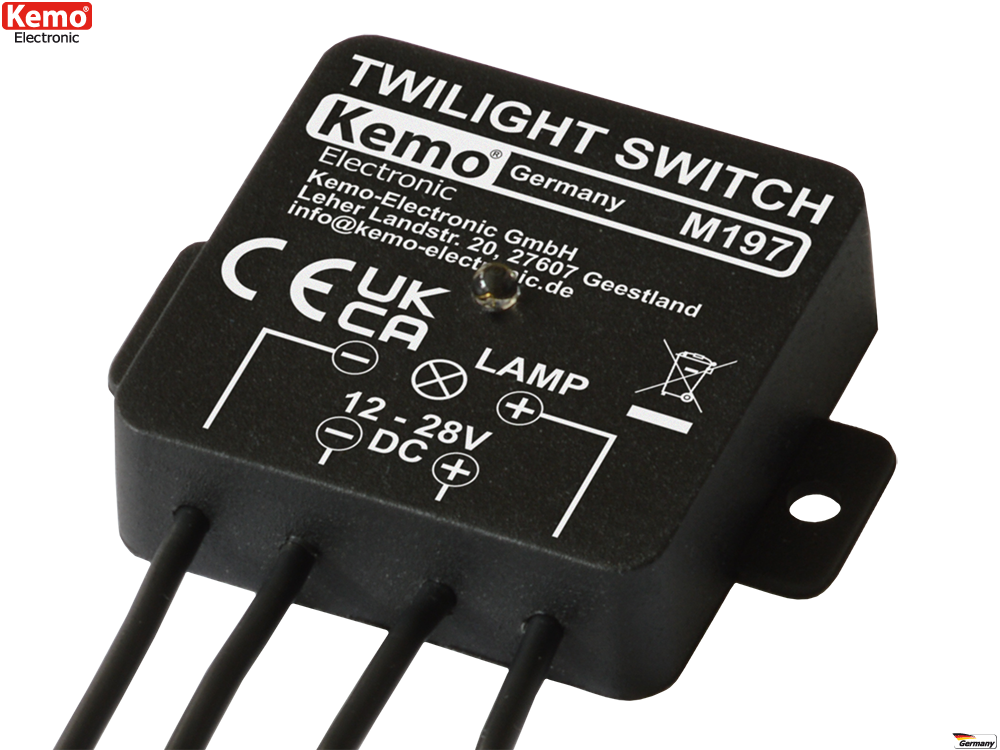

Twilight Switch 12 - 28 V/DC [M197]

Twilight Switch 12 - 28 V/DC
Click to enlarge | image may differ

EAN: 4024028031972
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data

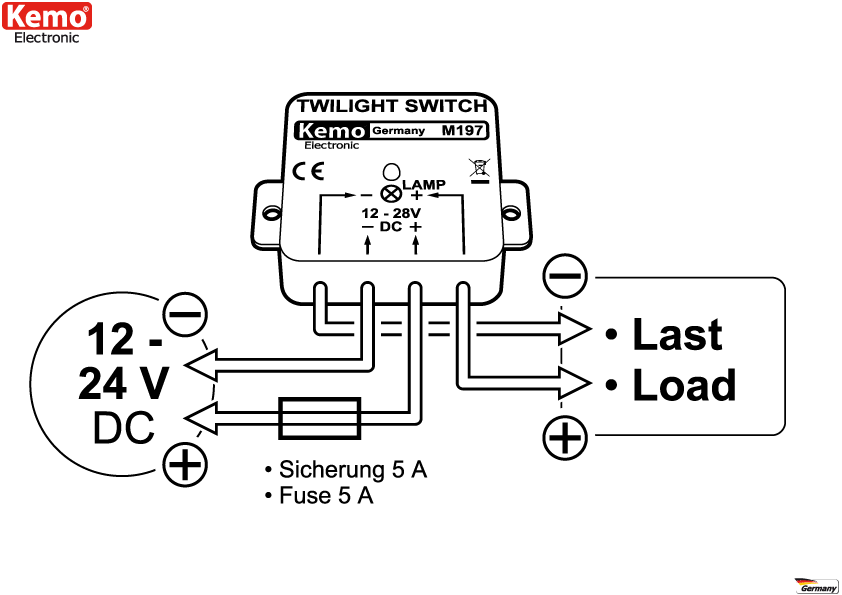

Operating voltage 12 - 28 V/DC
Current carrying capacity max. 5 A
Current consumption < 0.5 mA
Switching-on at approx. 25 Lux (± 50%)
Switching-off at approx. 45 Lux (± 50%)
Delay time approx. 4 sec. (± 3 sec). Short-circuit proof.
Dimensions approx. 40 x 40 x 12 mm (without fastening straps)
Ideal application area caravans, trucks, boats, weekend cottages (with power supply by an accumulator)

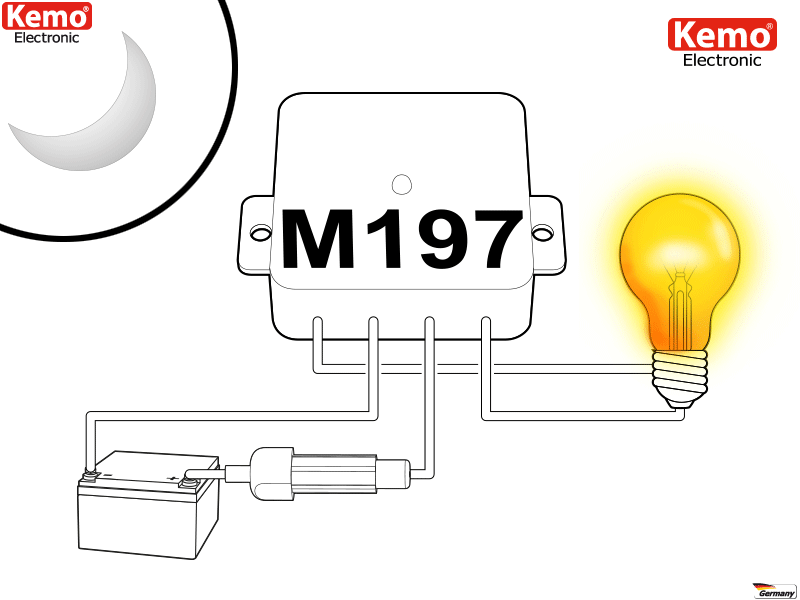

Switches on any electrical load (e.g. incandescent lamp, motor, LED lamp or the like) at nightfall and switches it off again at daybreak.
