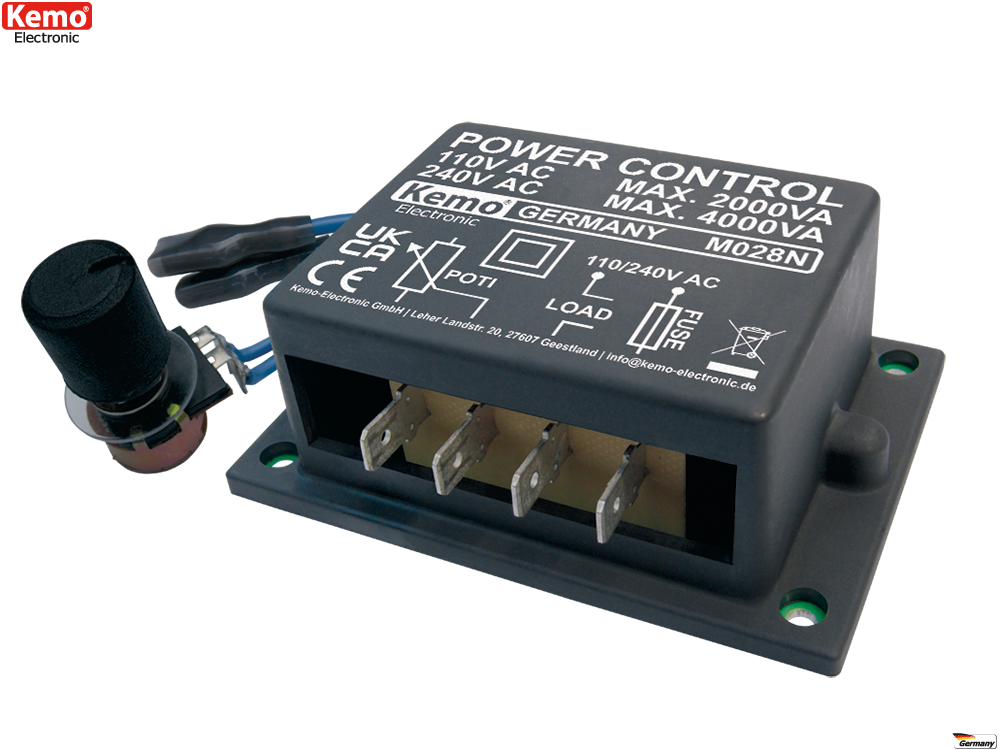

Power control 110 - 240 V/AC, 4000 VA [M028N]

Power control 110 - 240 V/AC, 4000 VA
Click to enlarge | image may differ

EAN: 4024028032924
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Operating voltage 110 - 240 V/AC
Loading capacity 110 V/AC this corresponds to max. 2000 VA and to max. 4000 VA at 230 V/AC
Max. load 18 A when mounting on a heat sink
Without additional heat sink max. 6 A (peak max. 25 A / 10 sec.)
Regulation phase control
Connectable loads ohmic + inductive loads (see circuit description)

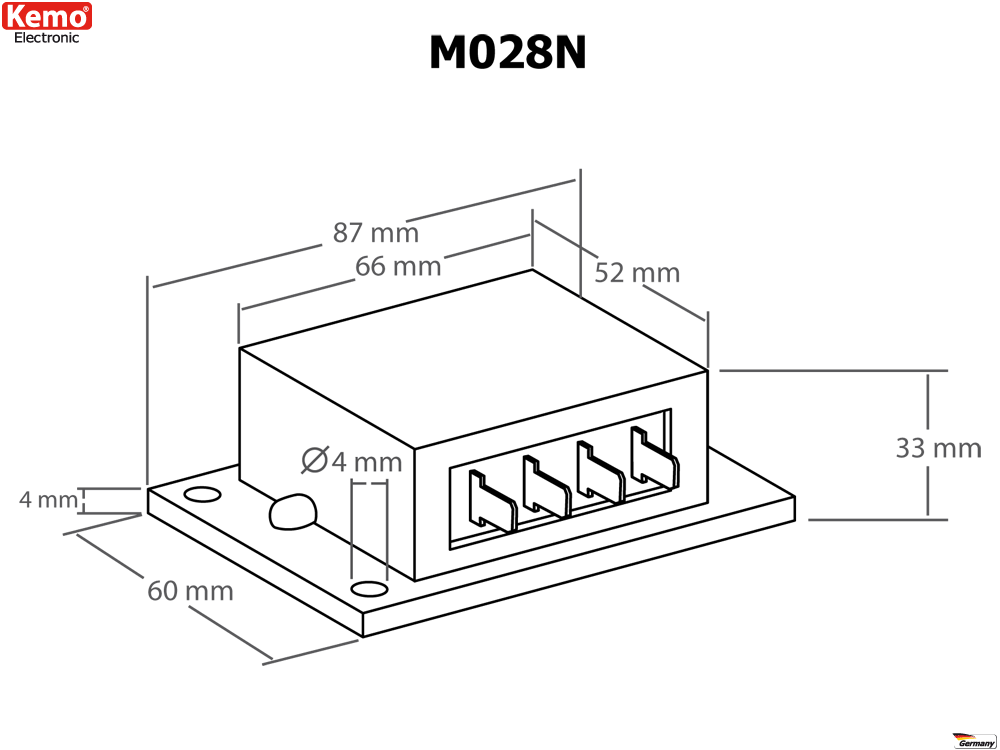

Dimensions 87 x 60 x 33 mm (with mounting bottom)

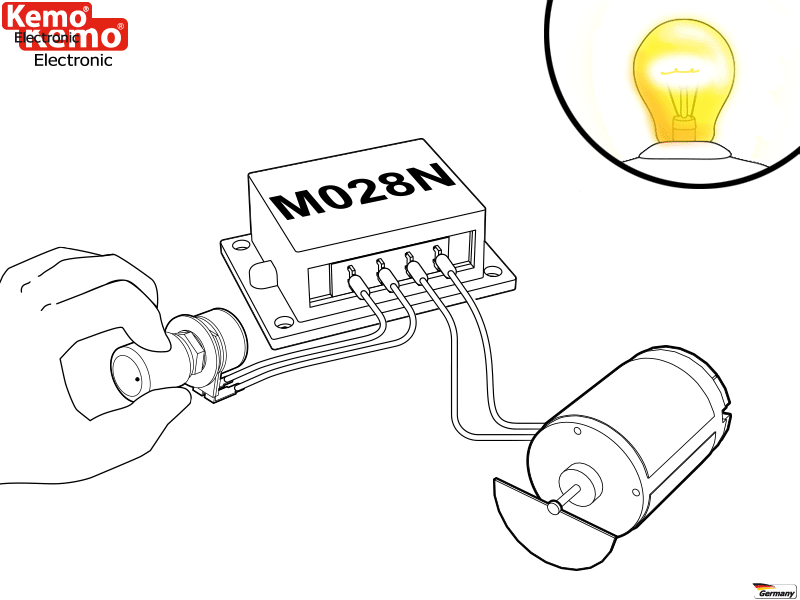

Control of resistive + inductive loads (e.g. motors, heatings etc., if they are phase-controllable).

Auxiliary module: M150 - DC + pulse converter
When superposing this module, it also possible to control M028N with control voltages (1 - 5 V/DC or 3 - 12 V/DC or 6 - 24 V/DC) or with TTL pulses (optionally in each case).

Important installation instructions, please note!
