Amplifier 3,5 W, universal [M031N]

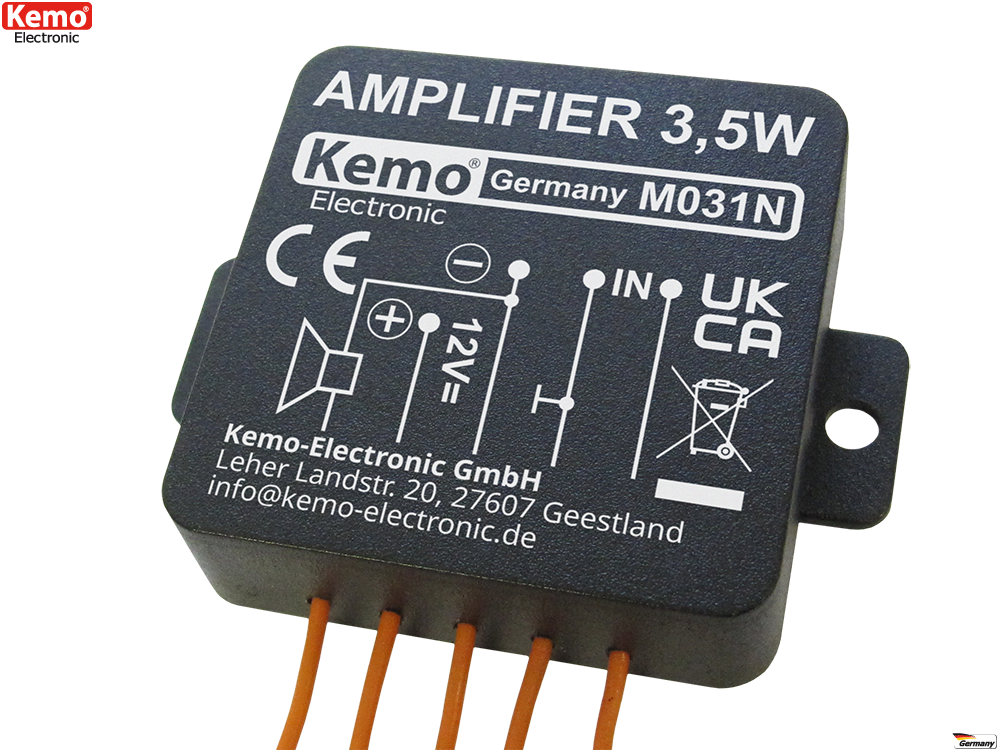

Amplifier 3,5 W, universal
Click to enlarge | image may differ

EAN: 4024028030319
Datasheet (pdf)
Questions to the item
FAQ
Print preview


Technical Data
Operating voltage 4.5 - 12 V/DC
Output max. 3.5 W music power
Loudspeaker connection 4 - 16 ohm
Input sensitivity < 80 mV
Frequency response approx. 40 - 20.000 Hz

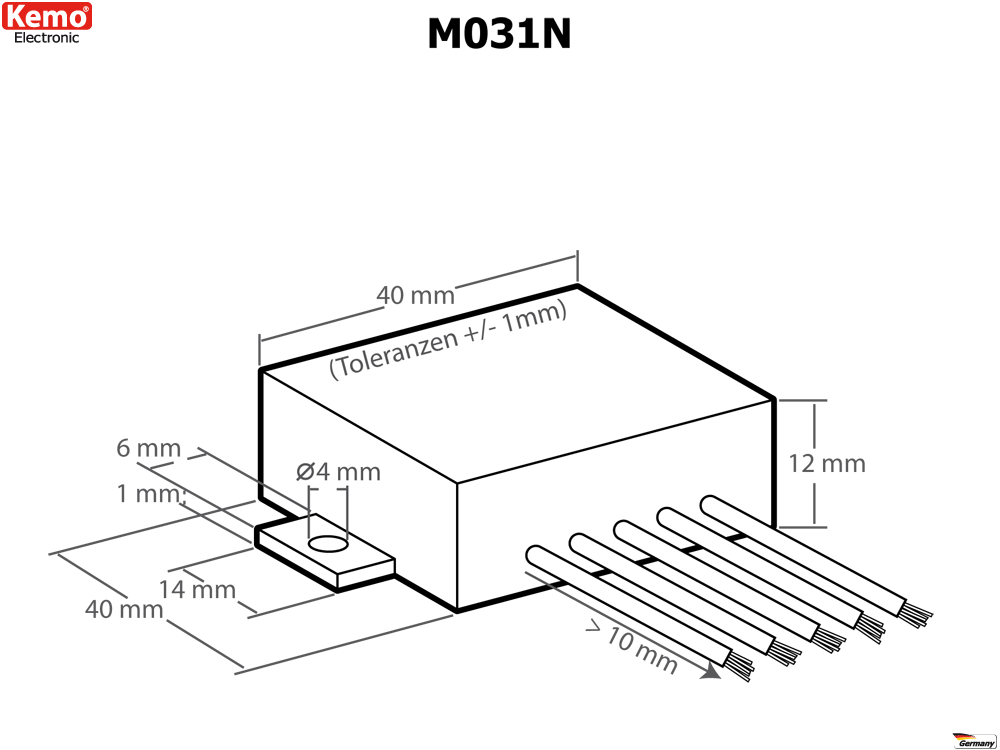

Dimensions approx. 40 x 40 x 12 mm (without fastening straps)

Robust amplifier module for universal use. The module is cast humidity-proof and shake-proof. The casting compound and the module case consist of a special, highly heat-conductive plastic. So no additional heat sinks are needed. The module is protected electronically against overheating and overload.

Available accessory: M040N - Universal preamplifier
