Soldering course - page 12

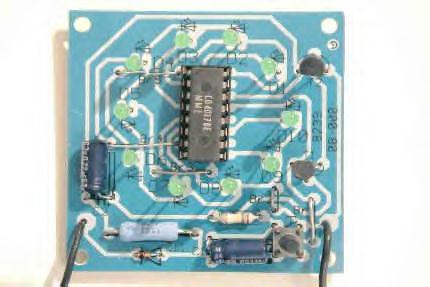

For the complete circuit board (all components inserted and soldered) please see picture. Finally the IC will be inserted to the base.

The following pictures will show some improper soldering.
